971
HTT, OEM job
MPP+

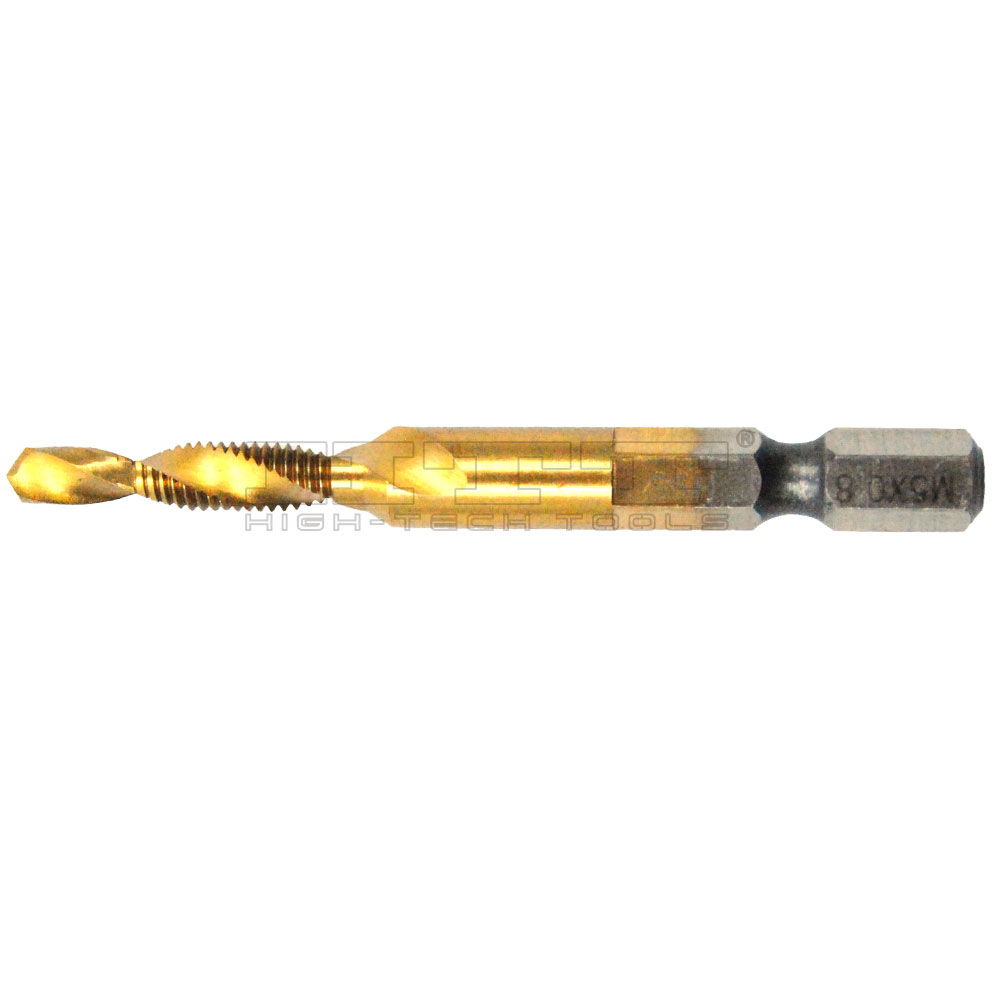

to drill & tap threads in various alloy&unalloy steel, metal, stainless steel, inox, non-ferrous, etc
971
M3-M10
DIN6.35E
Metal work
| Quantity: | |
|---|---|
Size Table:
| Item Number | Diameter x Thread size(mm) | Overall Length(mm) | Tip point angle(degrees) |
| 971.0305065 | M3 x 0.5 | 65 | 125 |
| 971.0407065 | M4 x 0.7 | 65 | 125 |
| 971.0508069 | M5 x 0.8 | 69 | 125 |
| 971.0610069 | M6 x 1.0 | 69 | 125 |
| 971.0812572 | M8 x 1.25 | 72 | 125 |
| 971.1015072 | M10 x 1.5 | 72 | 125 |
Size Table:
| Item Number | Diameter x Thread size(mm) | Overall Length(mm) | Tip point angle(degrees) |
| 971.0305065 | M3 x 0.5 | 65 | 125 |
| 971.0407065 | M4 x 0.7 | 65 | 125 |
| 971.0508069 | M5 x 0.8 | 69 | 125 |
| 971.0610069 | M6 x 1.0 | 69 | 125 |
| 971.0812572 | M8 x 1.25 | 72 | 125 |
| 971.1015072 | M10 x 1.5 | 72 | 125 |
