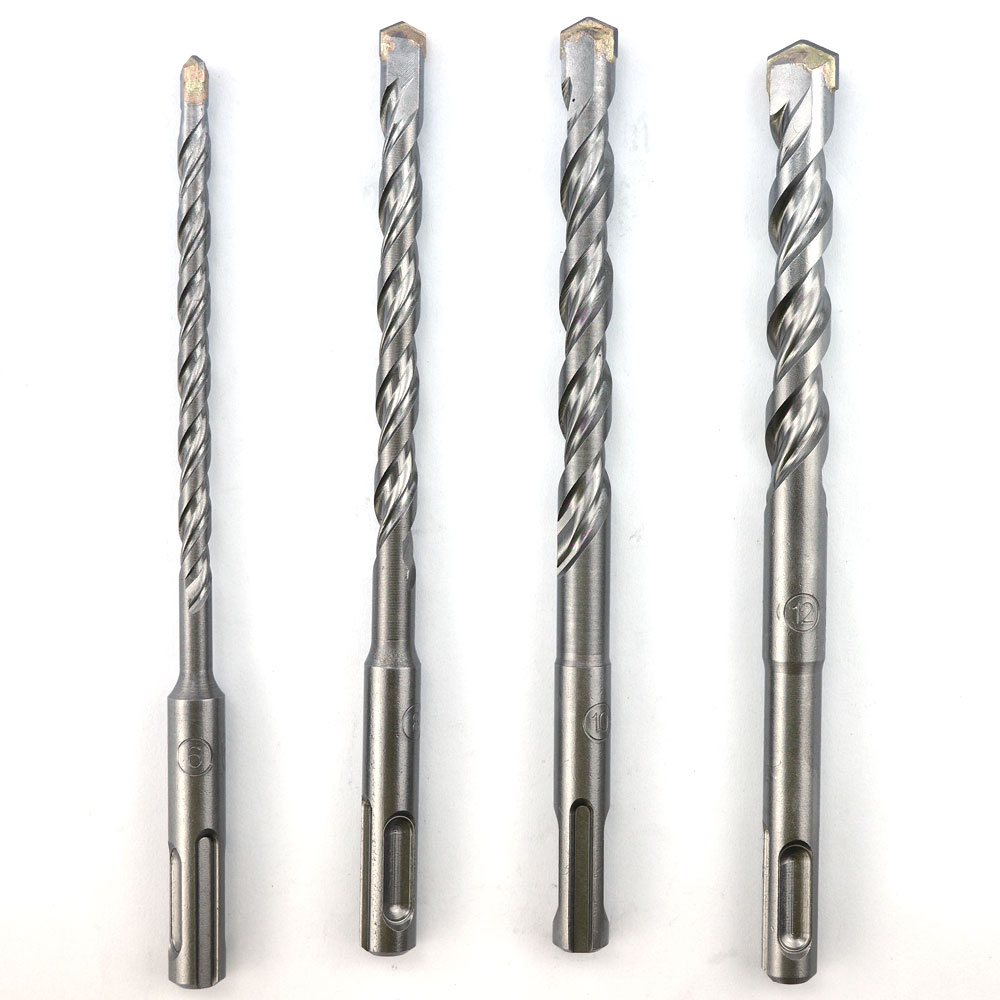

ECO 2Cutter Hammer Drill Bit SDS-plus

1, DY carbide 130degree tip point.
2, SDS-plus shank under Bosch audited to fit branded rotary hammers.
3, S4 type of flute maximizes the dust-rejection rate in faster drilling.
4, Special hardened steel blank guaratees that best durability to unify the carbide drilling life.

  • 2017 Series

  • HTT, OEM job

  • OPP

  • To drill various concrete, brick, stone, wall cements, etc.

  • 2017

  • 4 to 30mm

  • SDS-plus

  • Masonry work

Diameter x Working Length x Overall Length:
5 x 60 x 110mm
5.5 x 60 x 110mm
6 x 60 x 110mm
6.5 x 60 x 110mm
8 x 60 x 110mm
10 x 60 x 110mm
5 x 110 x 160mm
5.5 x 110 x 160mm
6 x 110 x 160mm
6.5 x 110 x 160mm
8 x 110 x 160mm
10 x 110 x 160mm
12 x 110 x 160mm
14 x 110 x 160mm
16 x 110 x 160mm
6 x 160 x 210mm
8 x 160 x 210mm
10 x 160 x 210mm
12 x 160 x 210mm
14 x 160 x 210mm
16 x 160 x 210mm
18 x 160 x 210mm
6 x 210 x 260mm
8 x 210 x 260mm
10 x 210 x 260mm
12 x 210 x 260mm
14 x 210 x 260mm
16 x 210 x 260mm
18 x 210 x 260mm
20 x 210 x 260mm
22 x 210 x 260mm
Availability:
Quantity:
Inquire Add to Basket

Size table:

Item No. Diameter(mm) Working Length(mm) Overall Length(mm)
2017.040110  4 60 110
2017.050110  5 60 110
2017.055110  5.5 60 110
2017.060110  6 60 110
2017.065110  6.5 60 110
2017.070110  7 60 110
2017.080110  8 60 110
2017.090110  9 60 110
2017.100110  10 60 110
2017.110110  11 60 110
2017.040160  4 110 160
2017.050160  5 110 160
2017.055160  5.5 110 160
2017.060160  6 110 160
2017.065160  6.5 110 160
2017.070160  7 110 160
2017.080160  8 110 160
2017.090160  9 110 160
2017.100160  10 110 160
2017.110160  11 110 160
2017.120160  12 110 160
2017.130160  13 110 160
2017.140160  14 110 160
2017.150160  15 110 160
2017.160160  16 110 160
2017.180160  18 110 160
2017.190160  19 110 160
2017.200160  20 110 160
2017.220160  22 110 160
2017.240160  24 110 160
2017.250160  25 110 160
2017.260160  26 110 160
2017.280160  28 110 160
2017.300160  30 110 160
2017.040180  4 130 180
2017.050180  5 130 180
2017.055180  5.5 130 180
2017.060180  6 130 180
2017.065180  6.5 130 180
2017.080180  8 130 180
2017.100180  10 130 180
2017.050210  5 160 210
2017.055210  5.5 160 210
2017.060210  6 160 210
2017.065210  6.5 160 210
2017.070210  7 160 210
2017.080210  8 160 210
2017.090210  9 160 210
2017.100210  10 160 210
2017.110210  11 160 210
2017.120210  12 160 210
2017.130210  13 160 210
2017.140210  14 160 210
2017.150210  15 160 210
2017.160210  16 160 210
2017.180210  18 160 210
2017.190210  19 160 210
2017.200210  20 160 210
2017.220210  22 160 210
2017.240210  24 160 210
2017.250210  25 160 210
2017.260210  26 160 210
2017.280210  28 160 210
2017.300210  30 160 210
2017.050260  5 210 260
2017.055260  5.5 210 260
2017.060260  6 210 260
2017.065260  6.5 210 260
2017.070260  7 210 260
2017.080260  8 210 260
2017.090260  9 210 260
2017.100260  10 210 260
2017.110260  11 210 260
2017.120260  12 210 260
2017.130260  13 210 260
2017.140260  14 210 260
2017.150260  15 210 260
2017.160260  16 210 260
2017.180260  18 210 260
2017.190260  19 210 260
2017.200260  20 210 260
2017.220260  22 210 260
2017.240260  24 210 260
2017.250260  25 210 260
2017.260260  26 210 260
2017.280260  28 210 260
2017.300260  30 210 260
2017.050310  5 260 310
2017.055310  5.5 260 310
2017.060310  6 260 310
2017.065310  6.5 260 310
2017.070310  7 260 310
2017.080310  8 260 310
2017.090310  9 260 310
2017.100310  10 260 310
2017.110310  11 260 310
2017.120310  12 260 310
2017.130310  13 260 310
2017.140310  14 260 310
2017.150310  15 260 310
2017.160310  16 260 310
2017.180310  18 260 310
2017.190310  19 260 310
2017.200310  20 260 310
2017.220310  22 260 310
2017.240310  24 260 310
2017.250310  25 260 310
2017.260310  26 260 310
2017.280310  28 260 310
2017.300310  30 260 310
2017.050350  5 300 350
2017.055350  5.5 300 350
2017.060350  6 300 350
2017.065350  6.5 300 350
2017.070350  7 300 350
2017.080350  8 300 350
2017.090350  9 300 350
2017.100350  10 300 350
2017.110350  11 300 350
2017.120350  12 300 350
2017.130350  13 300 350
2017.140350  14 300 350
2017.150350  15 300 350
2017.160350  16 300 350
2017.180350  18 300 350
2017.190350  19 300 350
2017.200350  20 300 350
2017.220350  22 300 350
2017.240350  24 300 350
2017.250350  25 300 350
2017.260350  26 300 350
2017.280350  28 300 350
2017.300350  30 300 350
2017.050410  5 360 410
2017.055410  5.5 360 410
2017.060410  6 360 410
2017.065410  6.5 360 410
2017.070410  7 360 410
2017.080410  8 360 410
2017.090410  9 360 410
2017.100410  10 360 410
2017.110410  11 360 410
2017.120410  12 360 410
2017.130410  13 360 410
2017.140410  14 360 410
2017.150410  15 360 410
2017.160410  16 360 410
2017.180410  18 360 410
2017.190410  19 360 410
2017.200410  20 360 410
2017.220410  22 360 410
2017.240410  24 360 410
2017.250410  25 360 410
2017.260410  26 360 410
2017.280410  28 360 410
2017.300410  30 360 410
2017.050450  5 400 450
2017.055450  5.5 400 450
2017.060450  6 400 450
2017.065450  6.5 400 450
2017.070450  7 400 450
2017.080450  8 400 450
2017.090450  9 400 450
2017.100450  10 400 450
2017.110450  11 400 450
2017.120450  12 400 450
2017.130450  13 400 450
2017.140450  14 400 450
2017.150450  15 400 450
2017.160450  16 400 450
2017.180450  18 400 450
2017.190450  19 400 450
2017.200450  20 400 450
2017.220450  22 400 450
2017.240450  24 400 450
2017.250450  25 400 450
2017.260450  26 400 450
2017.280450  28 400 450
2017.300450  30 400 450
2017.060550  6 500 550
2017.065550  6.5 500 550
2017.070550  7 500 550
2017.080550  8 500 550
2017.090550  9 500 550
2017.100550  10 500 550
2017.110550  11 500 550
2017.120550  12 500 550
2017.130550  13 500 550
2017.140550  14 500 550
2017.150550  15 500 550
2017.160550  16 500 550
2017.180550  18 500 550
2017.190550  19 500 550
2017.200550  20 500 550
2017.220550  22 500 550
2017.240550  24 500 550
2017.250550  25 500 550
2017.260550  26 500 550
2017.280550  28 500 550
2017.300550  30 500 550
2017.060600  6 550 600
2017.065600  6.5 550 600
2017.070600  7 550 600
2017.080600  8 550 600
2017.090600  9 550 600
2017.100600  10 550 600
2017.110600  11 550 600
2017.120600  12 550 600
2017.130600  13 550 600
2017.140600  14 550 600
2017.150600  15 550 600
2017.160600  16 550 600
2017.180600  18 550 600
2017.190600  19 550 600
2017.200600  20 550 600
2017.220600  22 550 600
2017.240600  24 550 600
2017.250600  25 550 600
2017.260600  26 550 600
2017.280600  28 550 600
2017.300600  30 550 600
2017.080800  8 750 800
2017.090800  9 750 800
2017.100800  10 750 800
2017.110800  11 750 800
2017.120800  12 750 800
2017.130800  13 750 800
2017.140800  14 750 800
2017.150800  15 750 800
2017.160800  16 750 800
2017.180800  18 750 800
2017.190800  19 750 800
2017.200800  20 750 800
2017.220800  22 750 800
2017.240800  24 750 800
2017.250800  25 750 800
2017.260800  26 750 800
2017.280800  28 750 800
2017.300800  30 750 800
2017.101000  10 950 1000
2017.111000  11 950 1000
2017.121000  12 950 1000
2017.131000  13 950 1000
2017.141000  14 950 1000
2017.151000  15 950 1000
2017.161000  16 950 1000
2017.181000  18 950 1000
2017.191000  19 950 1000
2017.201000  20 950 1000
2017.221000  22 950 1000
2017.241000  24 950 1000
2017.251000  25 950 1000
2017.261000  26 950 1000
2017.281000  28 950 1000
2017.301000  30 950 1000

2017-3
