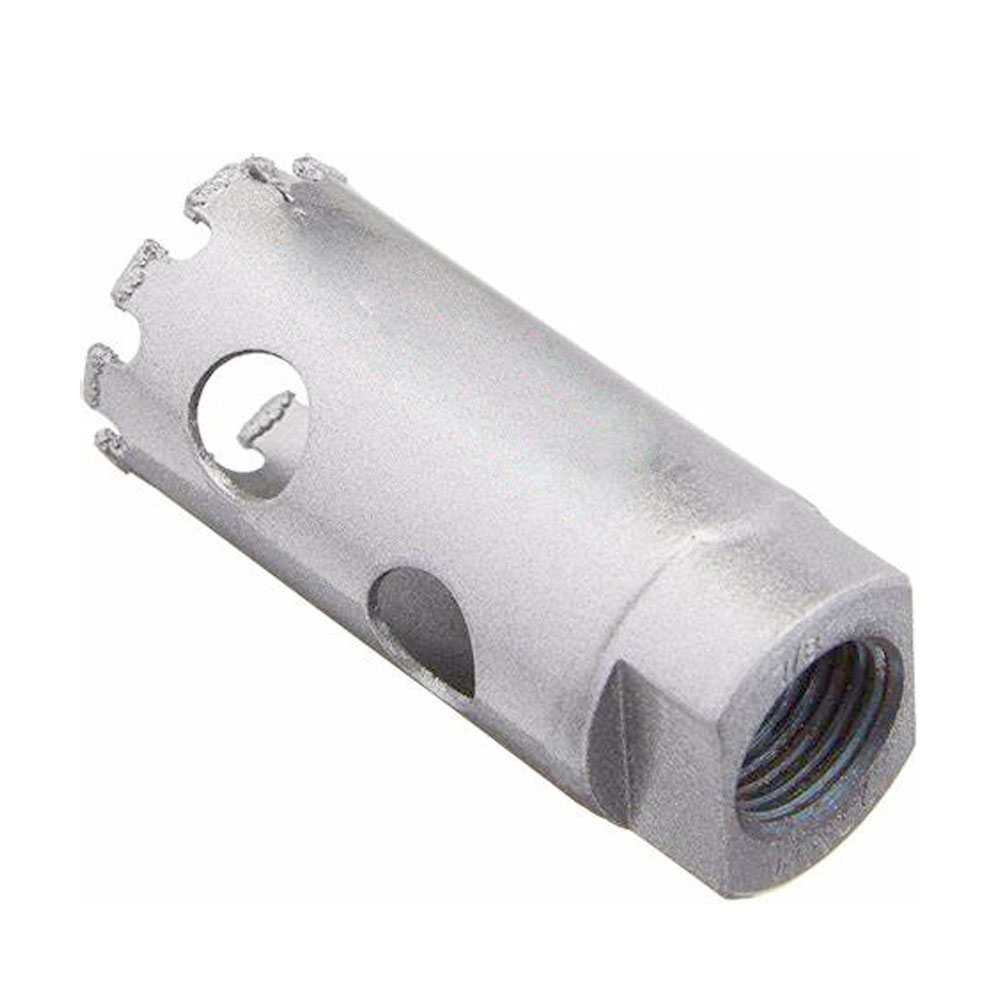

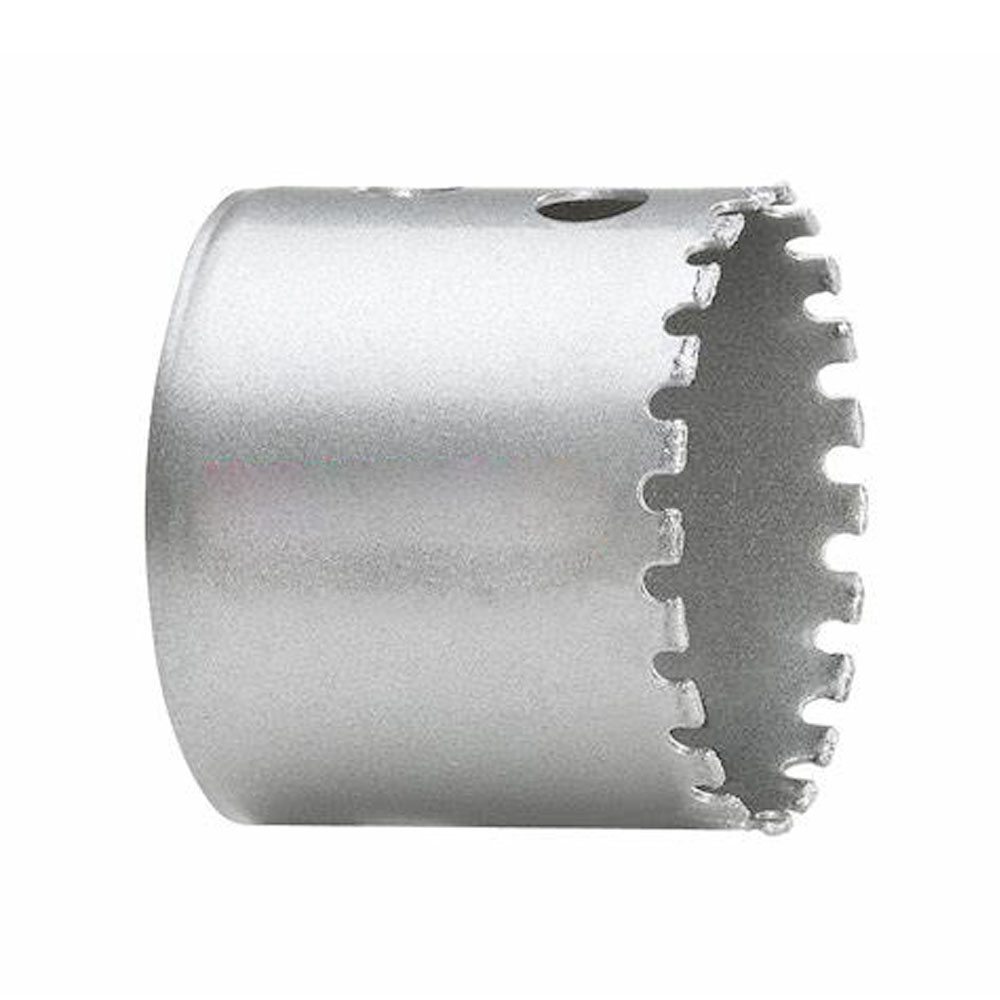

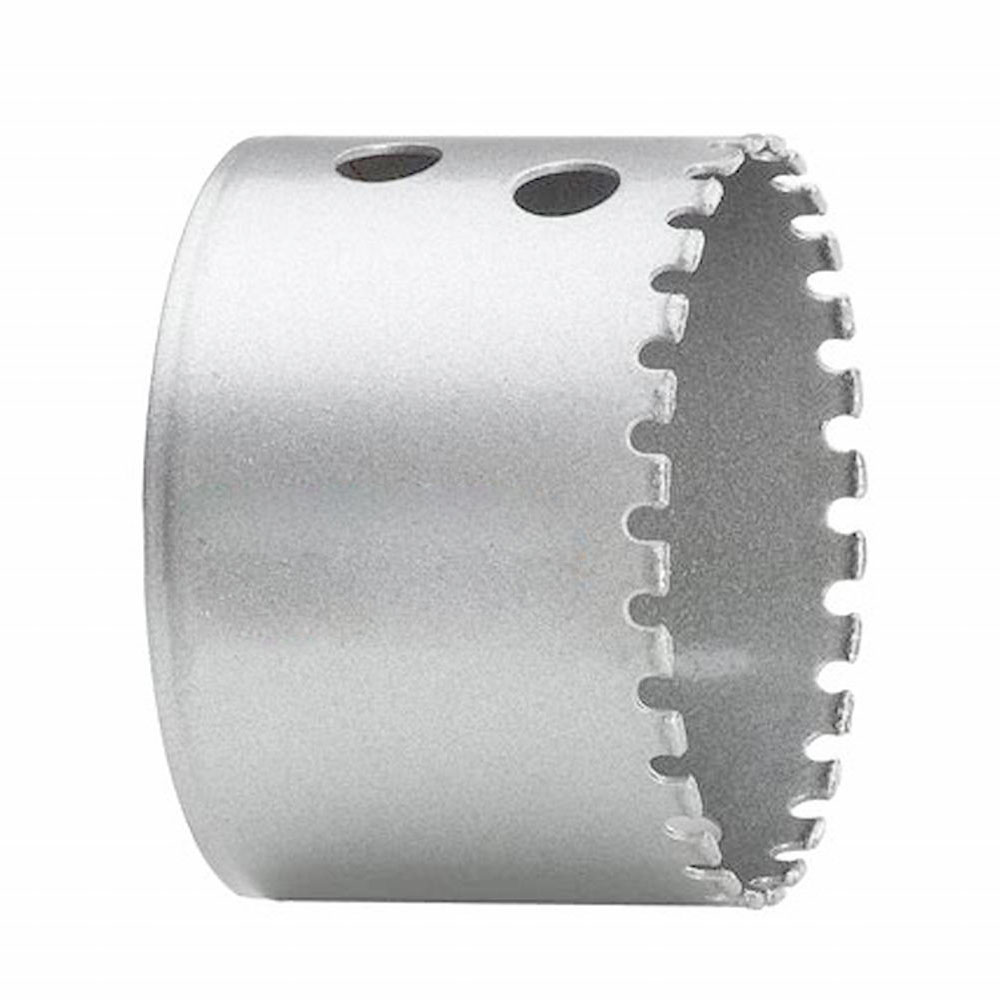

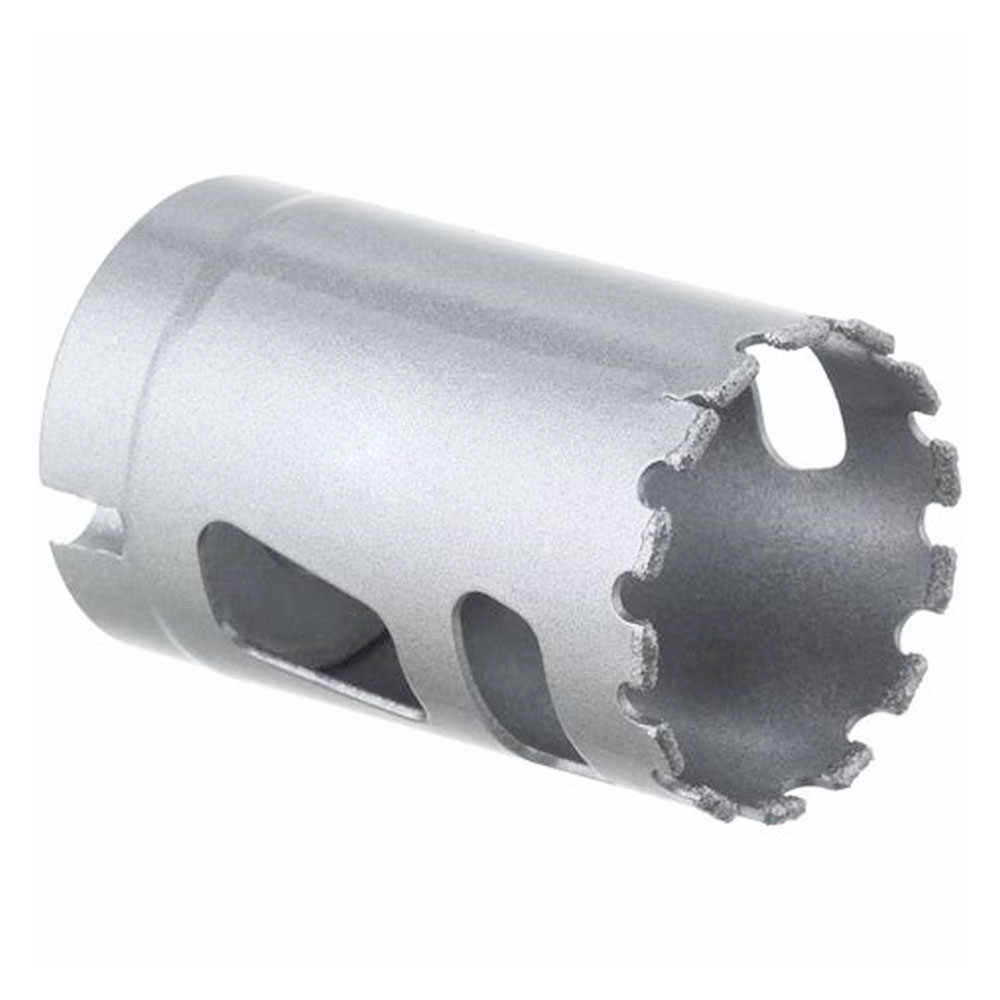

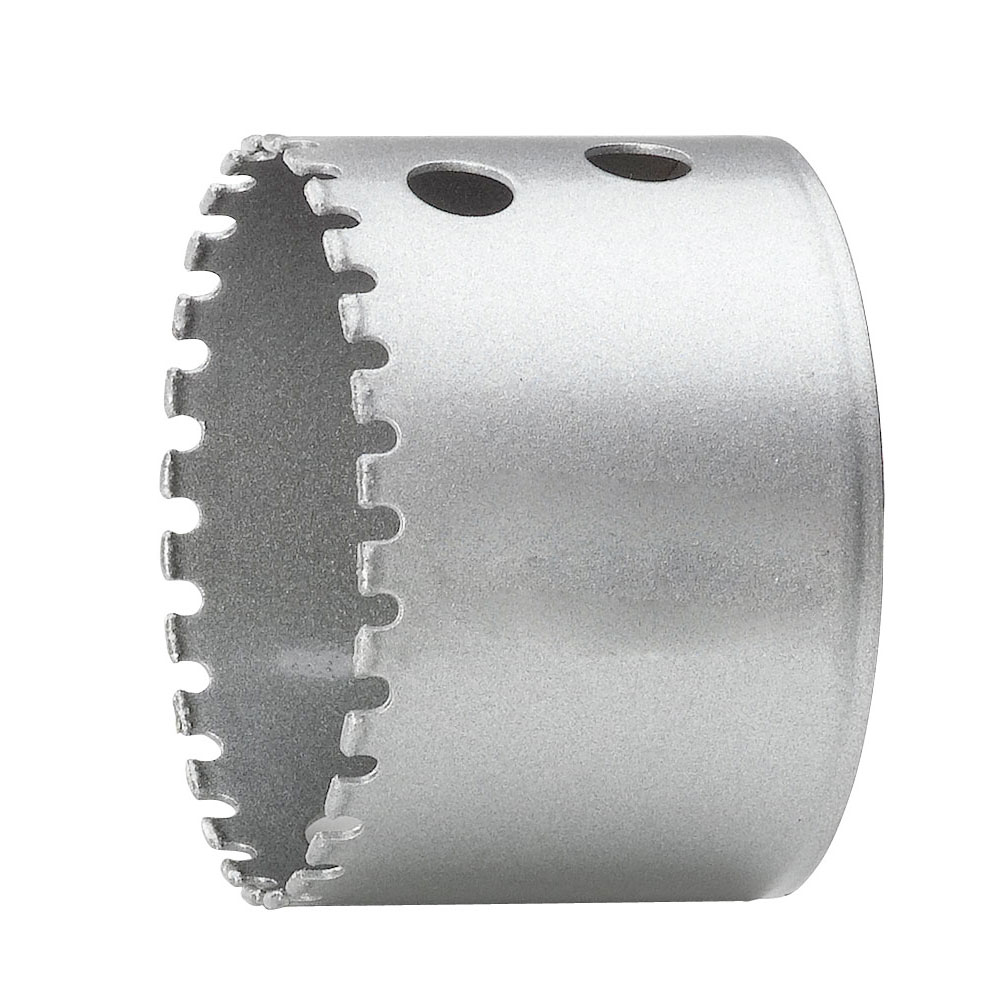

Diamond Grit Edged Hole Saw

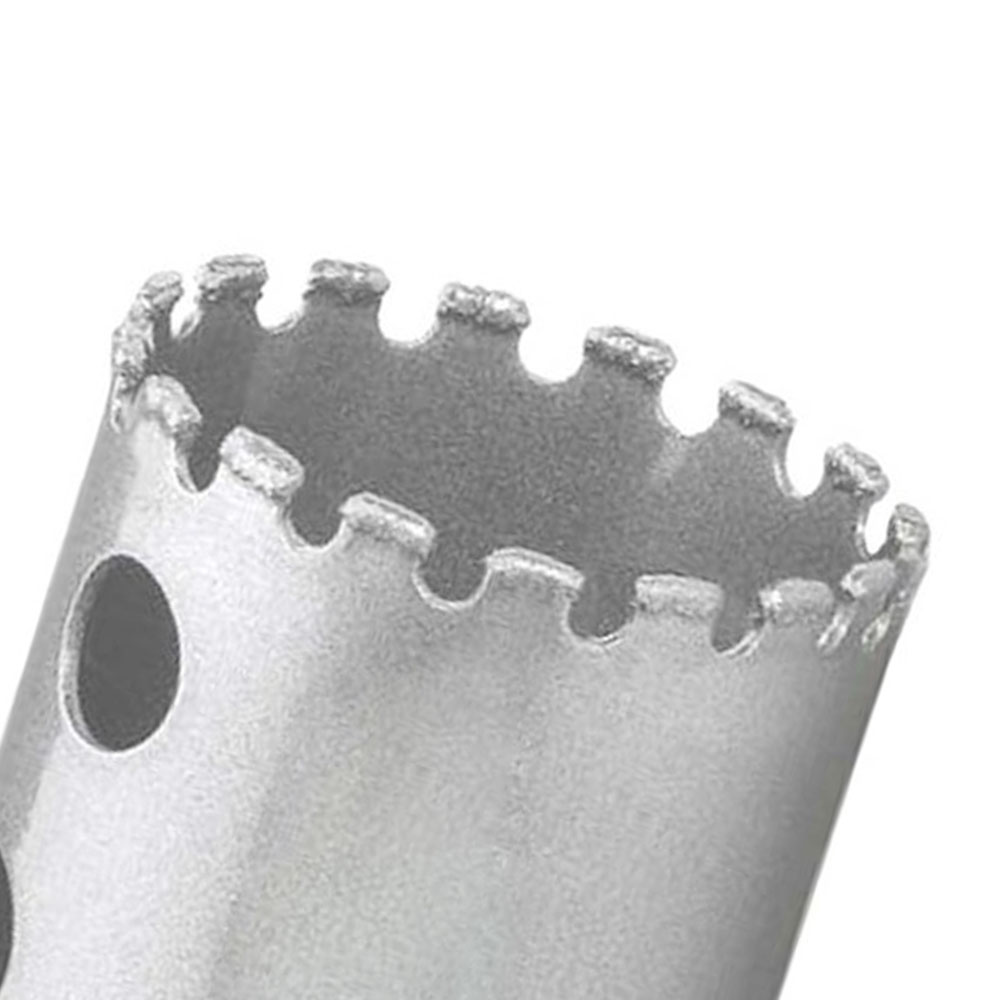

* Diamond grit edged hole saws have diamond coated cutting edge permanently bonded to a tough steel body providing the necessary clearance for cutting at high speeds.
* They will cut rapidly through reinforced plastics, germanium, asbestos/ substitutes and other abrasives that you may not be able to cut with carbide.
* It will produce clean holes and have a long cutting life.
* Wet cutting is strongly recommended.
* Max. Cutting depth is up to 39mm

  • 3835

  • OEM, 3WIN, HTT

  • HPP

  • to drill holes in various tile, ceramic, porcelain, brick, plastic, wood, granite, marble, masonry building material wall, floor, metal sheet, iron, rough wood, chipboard, plywood, etc.

  • 3835

  • 14mm to 210mm

  • 1/2-20UNF and 5/8-18UNF

  • Masonry work

Availability:
Quantity:
Inquire Add to Basket

Size Table:

Item Number Diameter(mm) Diameter (inch) Thread Connection
3835.3801402 14 9/16" 1/2-20UNF
3835.3801602 16 5/8" 1/2-20UNF
3835.3801702 17 11/16" 1/2-20UNF
3835.3801902 19 3/4" 1/2-20UNF
3835.3802002 20 25/32" 1/2-20UNF
3835.3802102 21 13/16" 1/2-20UNF
3835.3802202 22 7/8" 1/2-20UNF
3835.3802402 24 15/16" 1/2-20UNF
3835.3802502 25 1" 1/2-20UNF
3835.3802702 27 1-1/16" 1/2-20UNF
3835.3802902 29 1-1/8" 1/2-20UNF
3835.3803002 30 1-3/8" 1/2-20UNF
3835.3803202 32 1-1/4" 5/8-18UNF
3835.3803302 33 1-5/16" 5/8-18UNF
3835.3803502 35 1-3/8" 5/8-18UNF
3835.3803702 37 1-7/16" 5/8-18UNF
3835.3803802 38 1-1/2" 5/8-18UNF
3835.3804002 40 1-9/16" 5/8-18UNF
3835.3804102 41 1-5/8" 5/8-18UNF
3835.3804302 43 1-11/16" 5/8-18UNF
3835.3804402 44 1-3/4" 5/8-18UNF
3835.3804602 46 1-13/16" 5/8-18UNF
3835.3804802 48 1-7/8" 5/8-18UNF
3835.3805102 51 2" 5/8-18UNF
3835.3805202 52 2-1/16" 5/8-18UNF
3835.3805402 54 2-1/8" 5/8-18UNF
3835.3805702 57 2-1/4" 5/8-18UNF
3835.3805902 59 2-5/16" 5/8-18UNF
3835.3806002 60 2-3/8" 5/8-18UNF
3835.3806402 64 2-1/2" 5/8-18UNF
3835.3806502 65 2-9/16" 5/8-18UNF
3835.3806702 67 2-5/8" 5/8-18UNF
3835.3806802 68 2-11/16" 5/8-18UNF
3835.3807002 70 2-3/4" 5/8-18UNF
3835.3807302 73 2-7/8" 5/8-18UNF
3835.3807602 76 3" 5/8-18UNF
3835.3807902 79 3-1/8" 5/8-18UNF
3835.3808302 83 3-1/4" 5/8-18UNF
3835.3808602 86 3-3/8" 5/8-18UNF
3835.3808902 89 3-1/2" 5/8-18UNF
3835.3809202 92 3-5/8" 5/8-18UNF
3835.3809502 95 3-3/4" 5/8-18UNF
3835.3809802 98 3-7/8" 5/8-18UNF
3835.3810202 102 4" 5/8-18UNF
3835.3810502 105 4-1/8" 5/8-18UNF
3835.3810802 108 4-1/4" 5/8-18UNF
3835.3811102 111 4-3/8" 5/8-18UNF
3835.3811402 114 4-1/2" 5/8-18UNF
3835.3812102 121 4-3/4" 5/8-18UNF
3835.3812702 127 5" 5/8-18UNF
3835.3813302 133 5-1/4" 5/8-18UNF
3835.3814002 140 5-1/2" 5/8-18UNF
3835.3814602 146 5-3/4" 5/8-18UNF
3835.3815702 157 6" 5/8-18UNF
3835.3816002 160 6-19/64" 5/8-18UNF
3835.3816502 165 6-1/2" 5/8-18UNF
3835.3816802 168 6-5/8" 5/8-18UNF
3835.3817702 177 6-31/32" 5/8-18UNF
3835.3820002 200 7-7/8" 5/8-18UNF
3835.3821002 210 8-17/64" 5/8-18UNF

3835-5
