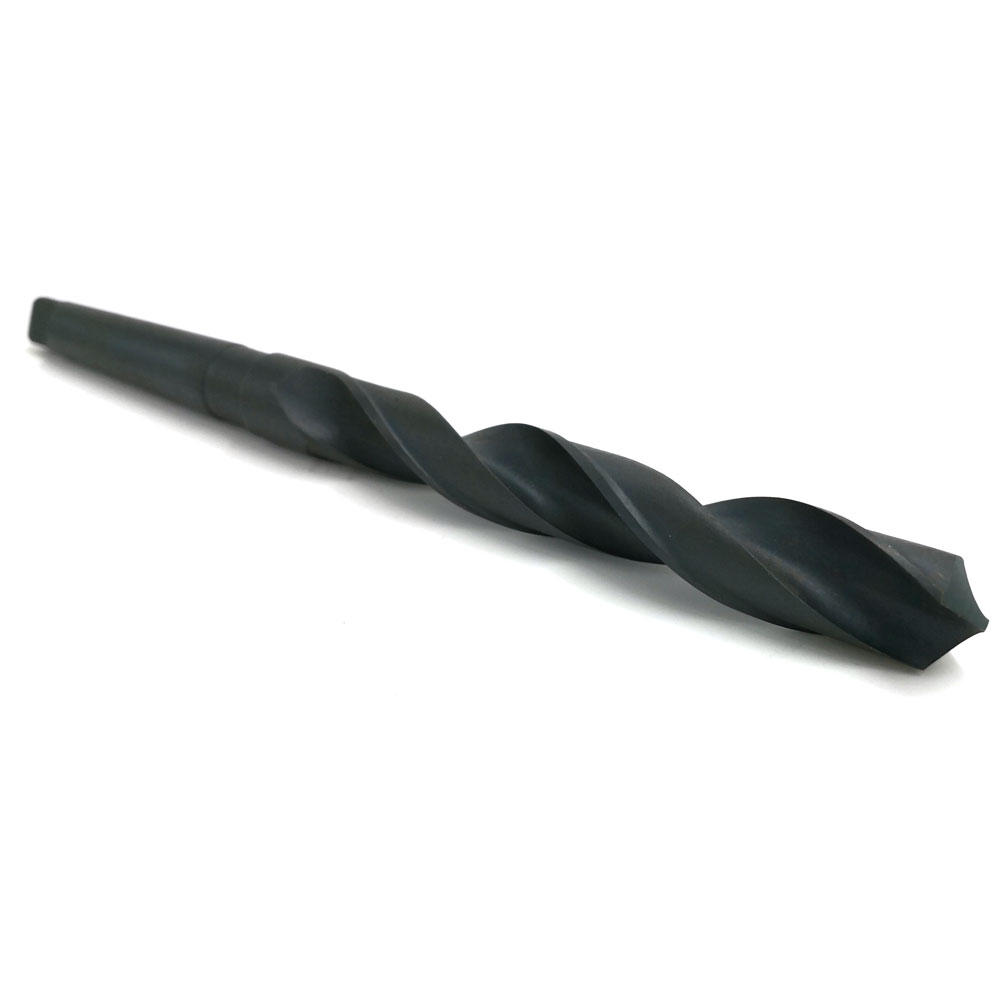

DIN345RN Morse Taper Shank HSS Twist Drill Bit

1, DIN345RN standard HSS twist drill bit with morse taper shank in 1pc structure design no welded type.
2, The best rotary concentricity and torque strength is guaranteed for heavy duty and long-time working.
3, HSS types of 4241, 4341, M2 are all available for this drill production
4, 118degree tip point design keeps the good drilling speed and constant stable driling performance.
5, Coolant feeding is strongly recommended for those big diameter hole drilling works constantly in various metal wares.

  • 918

  • OEM, HTT

  • MPP+

  • To cut holes in various steel, alloy, unalloyed steel, non-ferrous metal, iron, PVC, wood, plywood, etc.

  • 918

  • 12-35mm

  • Morse Taper Shank

  • Metal work

Availability:
Quantity:
Inquire Add to Basket

Size Table:

Item Number Diameter(mm) Overall Length(mm) Flute Length(mm) Morse No.
918.007515001 7.5 150 69 1
918.007815601 7.8 156 75 1
918.008015601 8.0 156 75 1
918.008215601 8.2 156 75 1
918.008515601 8.5 156 75 1
918.008816201 8.8 162 81 1
918.009016201 9.0 162 81 1
918.009216201 9.2 162 81 1
918.009516201 9.5 162 81 1
918.009816801 9.8 168 87 1
918.010016801 10.0 168 87 1
918.010216801

10.2

 168 87 1
918.010516801 10.5 168 87 1
918.010817501 10.8 175 94 1
918.011017501 11.0 175 94 1
918.011217501 11.2 175 94 1
918.011517501 11.5 175 94 1
918.011817501 11.8 175 94 1
918.012018201 12.0 182 101 1
918.012218201 12.2 182 101 1
918.012518201 12.5 182 101 1
918.012818201 12.8 182 101 1
918.013018202 13.0 182 101 2
918.013218202 13.2 182 101 2
918.013518902 13.5 189 108 2
918.013818902 13.8 189 108 2
918.014018902 14.0 189 108 2
918.0142521202 14.25 212 114 2
918.014521202 14.5 212 114 2
918.0147521202 14.75 212 114 2
918.015021202 15.0 212 114 2
918.0152521802 15.25
 218 120 2
918.015521802 15.50
 218 120 2
918.0157521802 15.75 218 120 2
918.016021802 16.0 218 120 2
918.0162522302 16.25 223 125 2
918.016522302 16.5 223 125 2
918.0167522302 16.75 223 125 2
918.017022302 17.0 223 125 2
918.0172522802 17.25 228 130 2
918.017522802 17.5 228 130 2
918.0177522802 17.75 228 130 2
918.018022802 18.0 228 130 2
918.0182523302 18.25 233 135 2
918.018523302 18.5
 233 135 2
918.0187523302 18.75 233 135 2
918.019023302 19.0 233 135 2
918.0192523802 19.25 238 140 2
918.019523802 19.5 238 140 2
918.0197523802 19.75 238 140 2
918.020023802 20.0 238 140 2
918.0202524302 20.25 243 145 2
918.020524302 20.5 243 145 2
918.0207524302 20.75 243 145 2
918.021024302 21.0 243 145 2
918.021224802 21.2 248 150 2
918.021524802 21.5 248 150 2
918.022024802 22.0 248 150 2
918.022525302 22.5 253 155 2
918.023025302 23 253 155 2
918.0232527603 23.25 276 155 3
918.023527603 23.5 276 155 3
918.0237528103 23.75 281 160 3
918.024028103 24.0 281 160 3
918.0242528103 24.25 281 160 3
918.024528103 24.5
 281 160 3
918.0247528103 24.75 281 160 3
918.025028103 25.0 281 160 3
918.0252528603 25.25 286 165 3
918.025528603 25.5 286 165 3
918.0257528603 25.75 286 165 3
918.026028603 26.0 286 165 3
918.0262528603 26.25 286 165 3
918.026528603 26.5 286 165 3
918.0267529103 26.75 291 170 3
918.027029103 27.0 291 170 3
918.0272529103 27.25 291 170 3
918.027529103 27.5 291 170 3
918.0277529103 27.75 291 170 3
918.028029103 28.0 291 170 3
918.0282529603 28.25 296 175 3
918.028529603 28.5 296 175 3
918.0287529603 28.75 296 175 3
918.029029603 29.0 296 175 3
918.0292529603 29.25 296 175 3
918.029529603 29.5 296 175 3
918.0297529603 29.75 296 175 3
918.030029603 30.0 296 175 3
918.0302530103 30.25 301 180 3
918.030530103 30.5 301 180 3
918.0307530103 30.75 301 180 3
918.031030103 31.0 301 180 3
918.0312530103 31.25 301 180 3
918.031530103 31.5 301 180 3
918.0317530603 31.75 306 185 3
918.032033404 32.0 334 185 4
918.032533404 32.5 334 185 4
918.033033404 33.0 334 185 4
918.033533404 33.5 334 185 4

918-5
