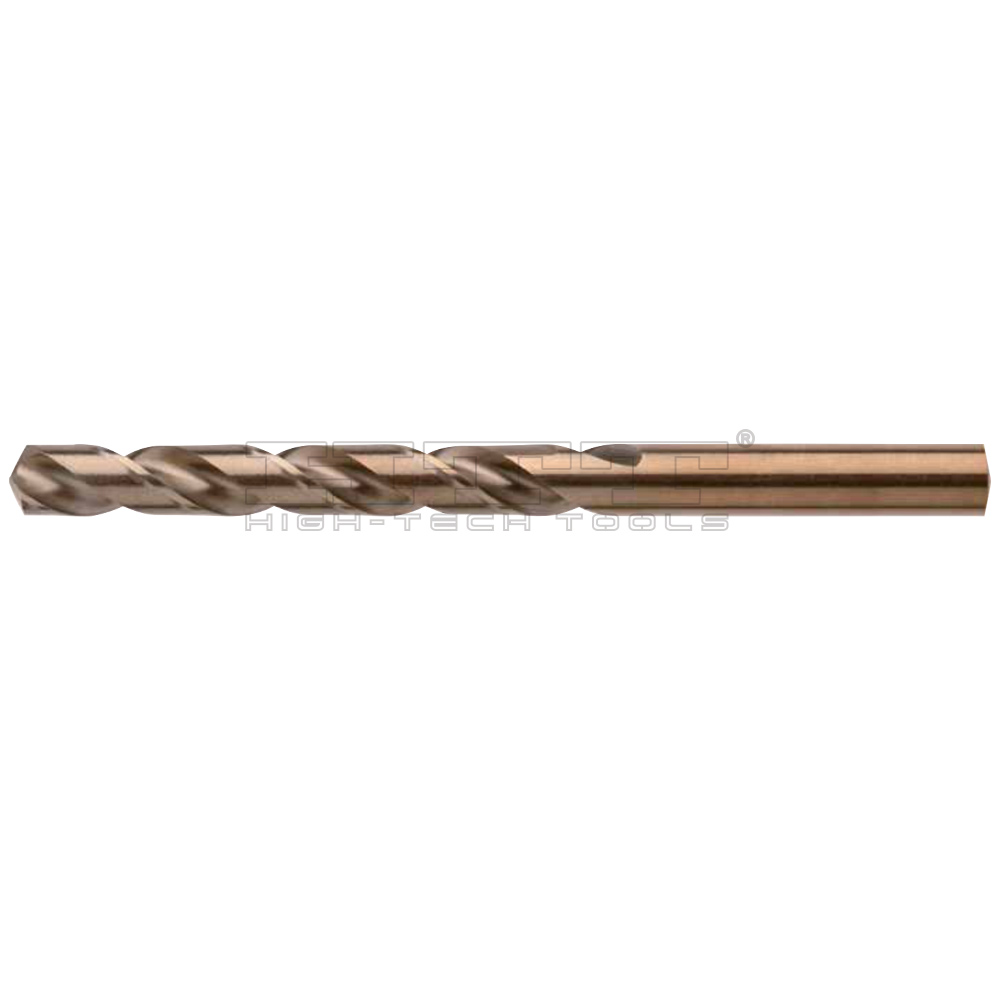

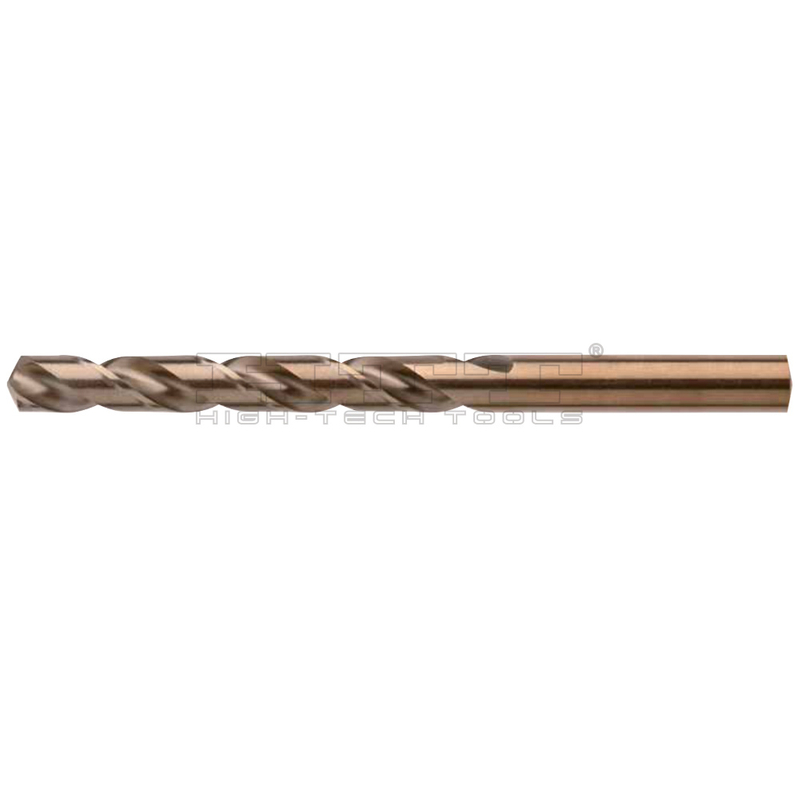

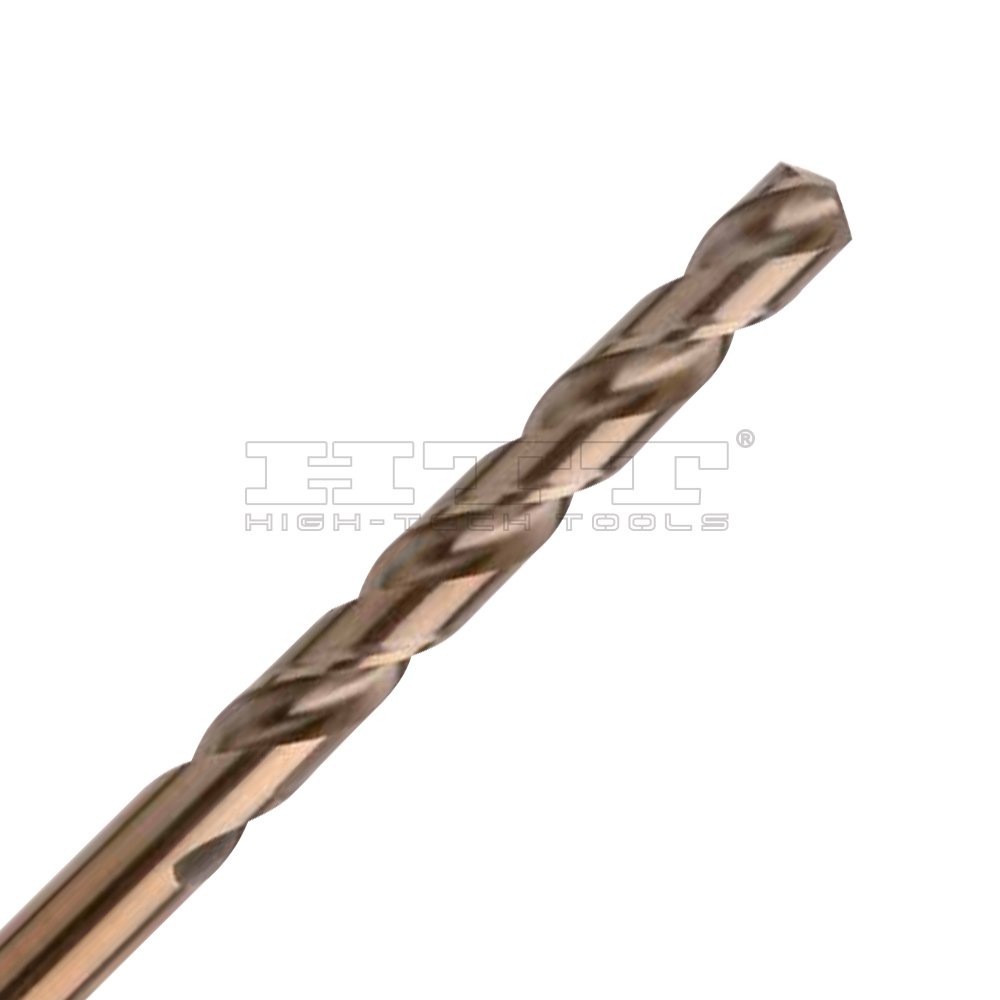

990 Series
HTT, OEM job
HPP
To drill holes in unalloyed and alloyed steels, stainless steel, cast iron, etc.
990
0.5 to 13mm
Cylinder
Metal work
| Quantity: | |
|---|---|
Size Table:
Download Data Sheet 990 Series.pdf
| Item Number | Diameter(mm) | Working Length(mm) | Overall Length(mm) |
| 990.3380050 | 0.5 | 6 | 22 |
| 990.3380100 | 1.0 | 12 | 34 |
| 990.3380150 | 1.5 | 18 | 40 |
| 990.3380200 | 2.0 | 24 | 49 |
| 990.3380250 | 2.5 | 30 | 57 |
| 990.3380300 | 3.0 | 33 | 61 |
| 990.3380320 | 3.2 | 36 | 65 |
| 990.3380350 | 3.5 | 39 | 70 |
| 990.3380400 | 4.0 | 43 | 75 |
| 990.3380420 | 4.2 | 43 | 75 |
| 990.3380450 | 4.5 | 47 | 80 |
| 990.3380500 | 5.0 | 52 | 86 |
| 990.3380520 | 5.2 | 52 | 86 |
| 990.3380550 | 5.5 | 57 | 93 |
| 990.3380600 | 6.0 | 57 | 93 |
| 990.3380620 | 6.2 | 63 | 101 |
| 990.3380650 | 6.5 | 68 | 109 |
| 990.3380700 | 7.0 | 69 | 109 |
| 990.3380750 | 7.5 | 75 | 117 |
| 990.3380800 | 8.0 | 75 | 117 |
| 990.3380850 | 8.5 | 81 | 125 |
| 990.3380900 | 9.0 | 81 | 125 |
| 990.3380950 | 9.5 | 87 | 133 |
| 990.3381000 | 10.0 | 87 | 133 |
| 990.3381050 | 10.5 | 94 | 142 |
| 990.3381100 | 11.0 | 94 | 142 |
| 990.3381150 | 11.5 | 101 | 151 |
| 990.3381200 | 12.0 | 101 | 151 |
| 990.3381250 | 12.5 | 101 | 151 |
| 990.3381300 | 13.0 | 101 | 151 |
