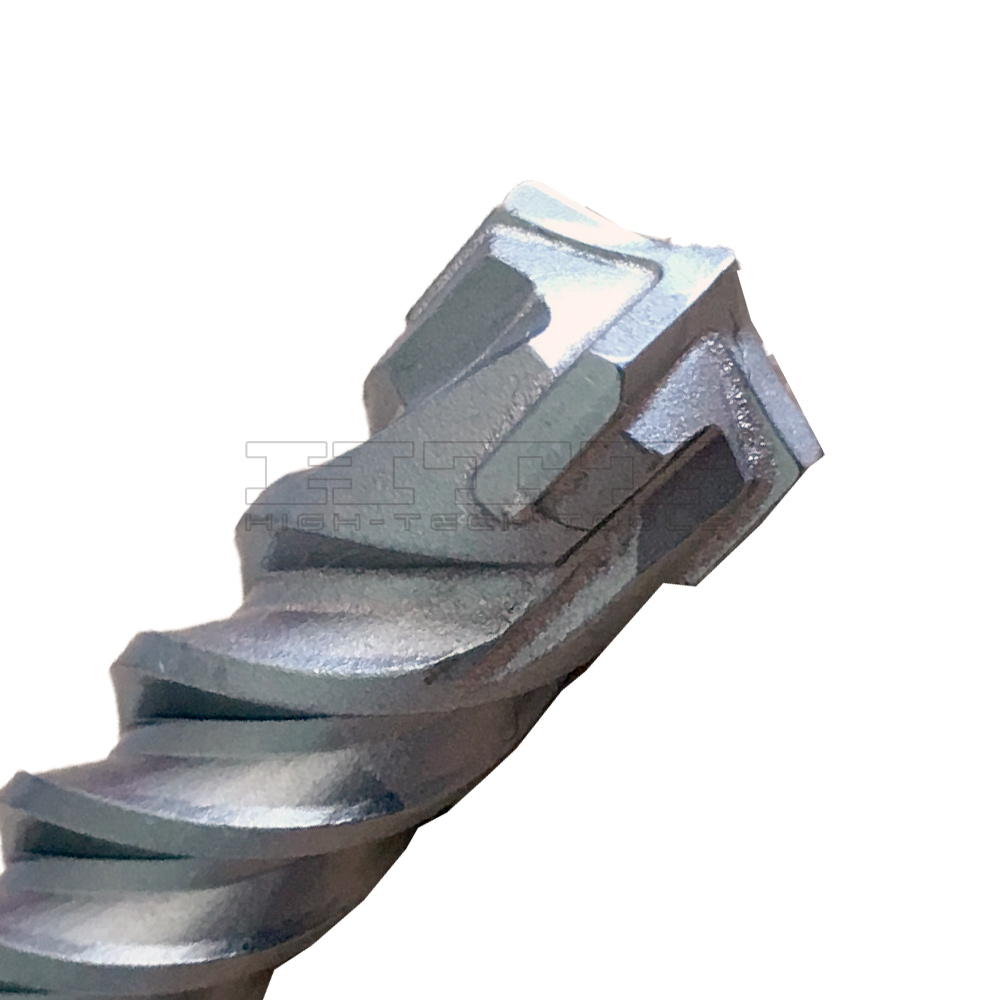

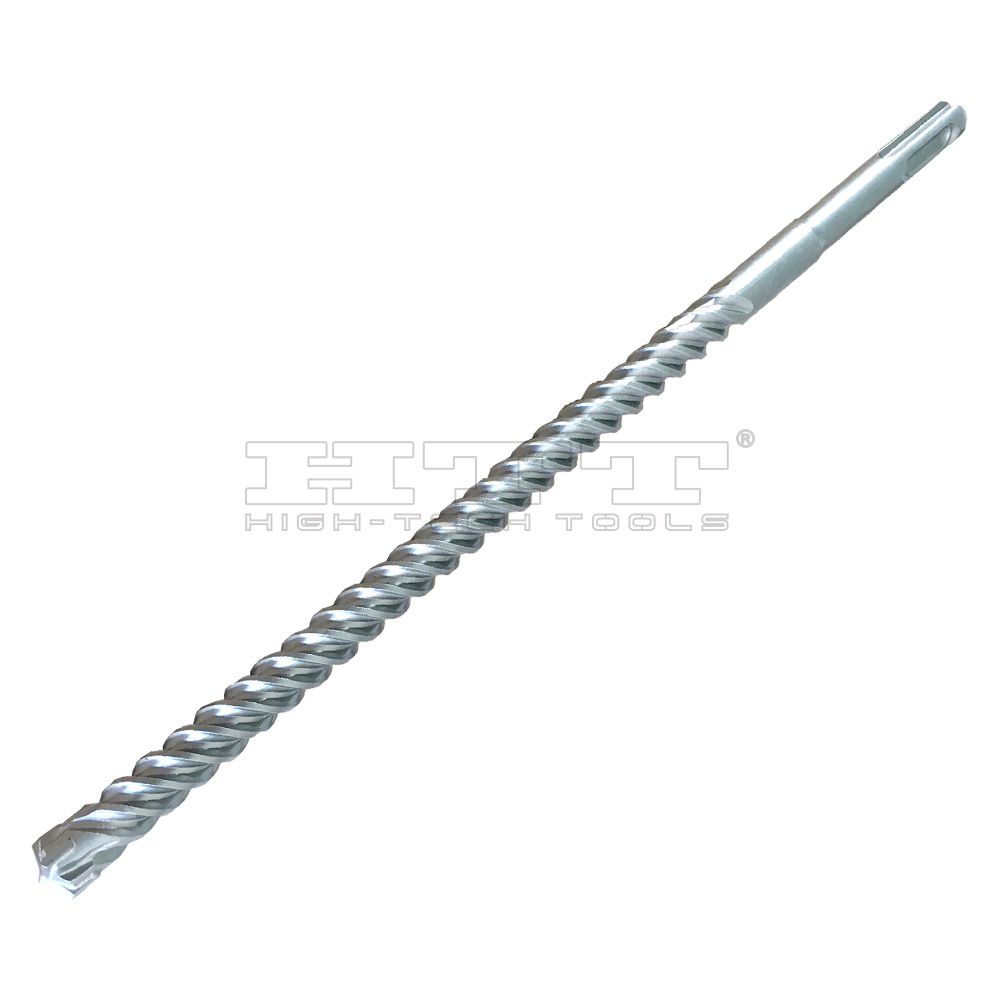

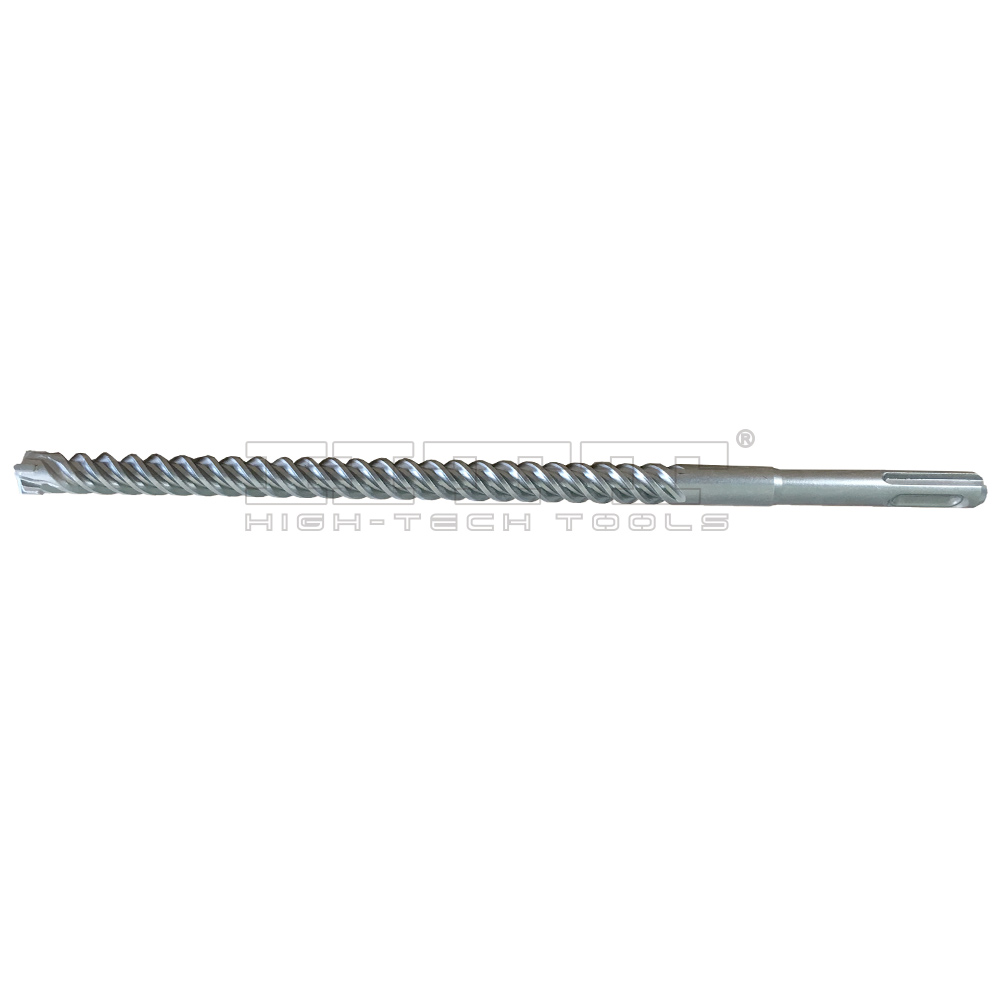

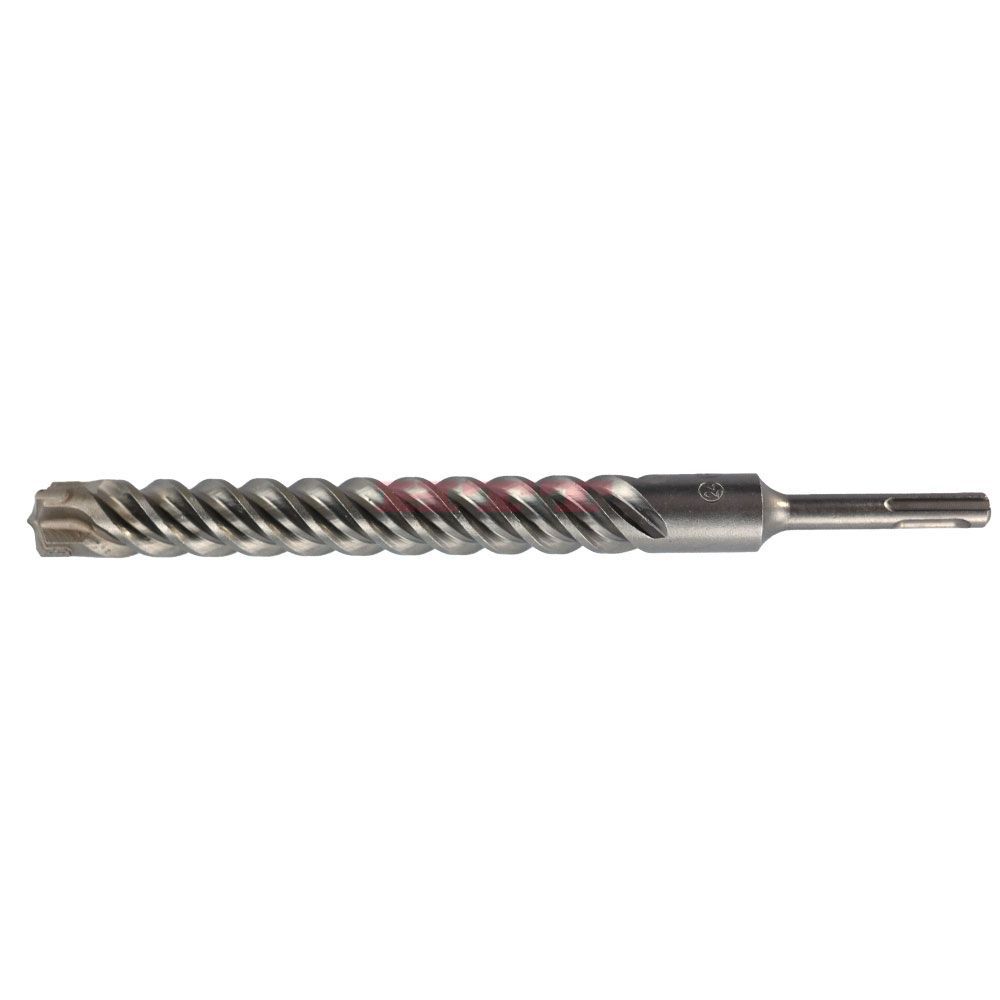

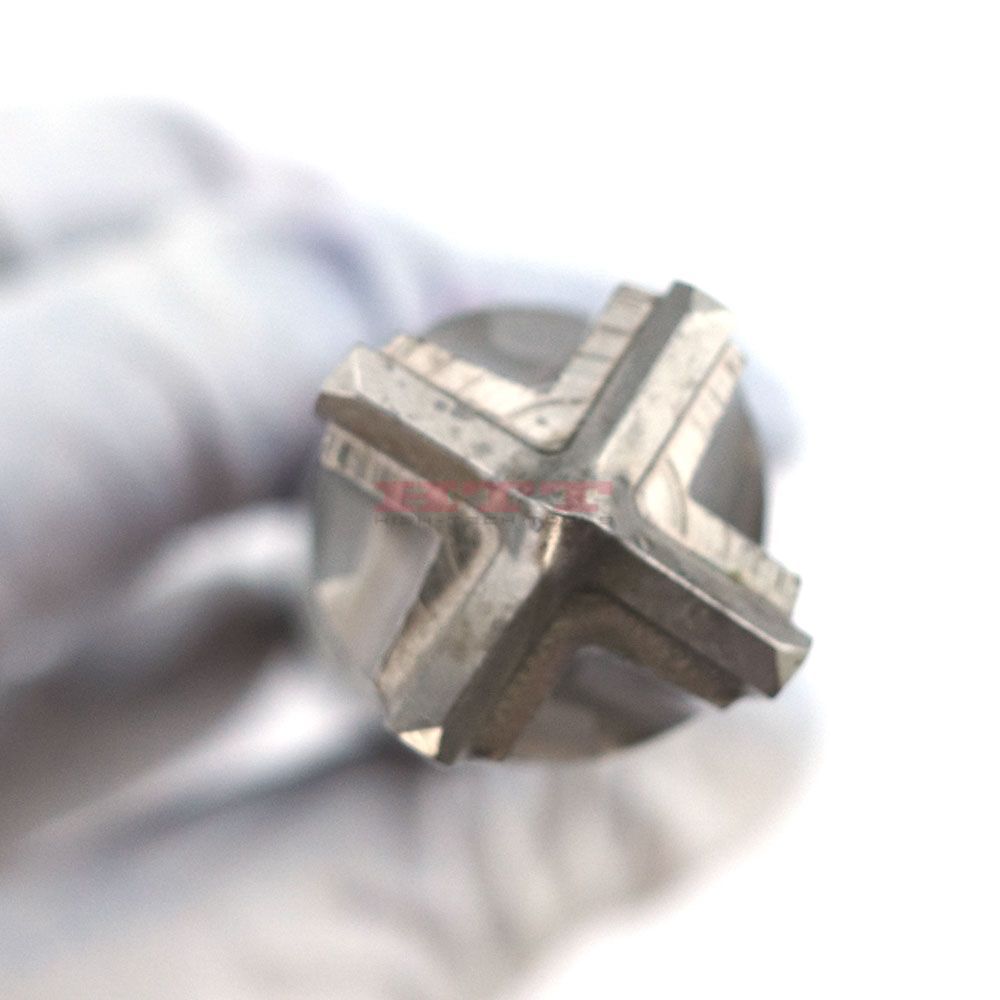

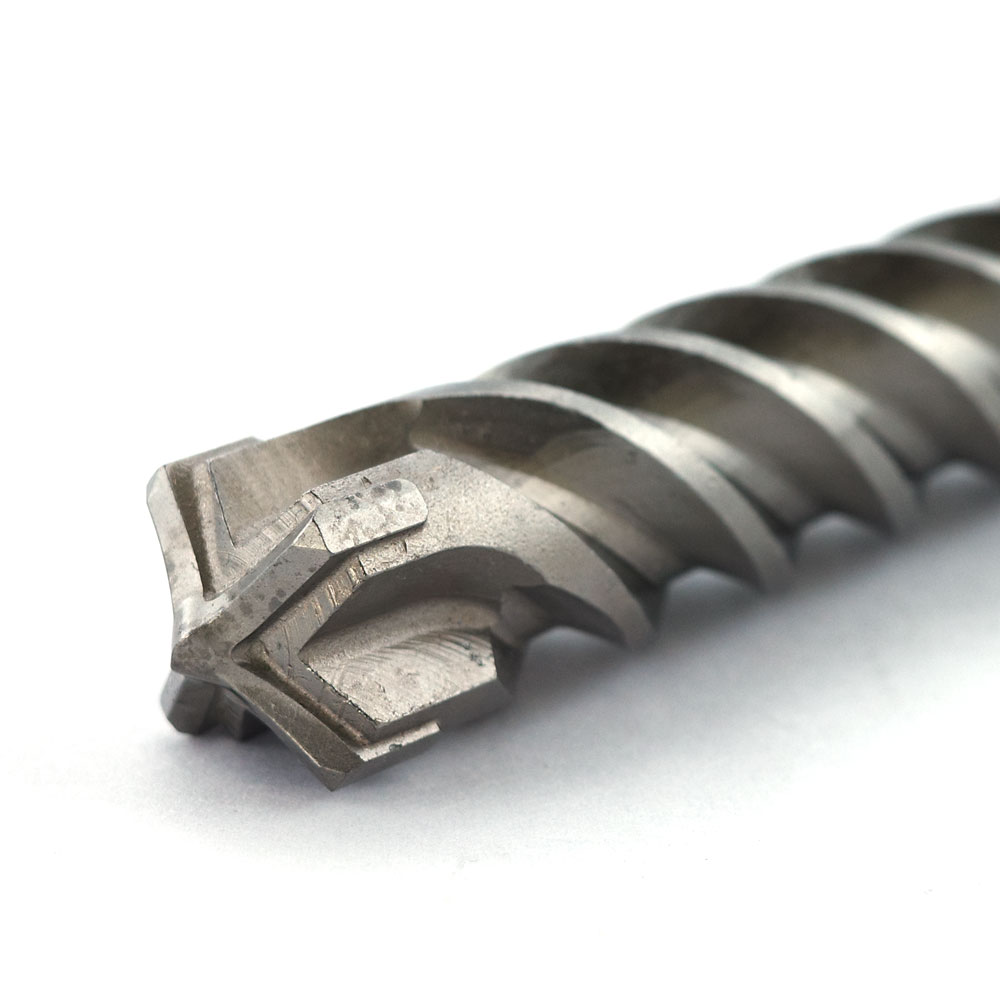

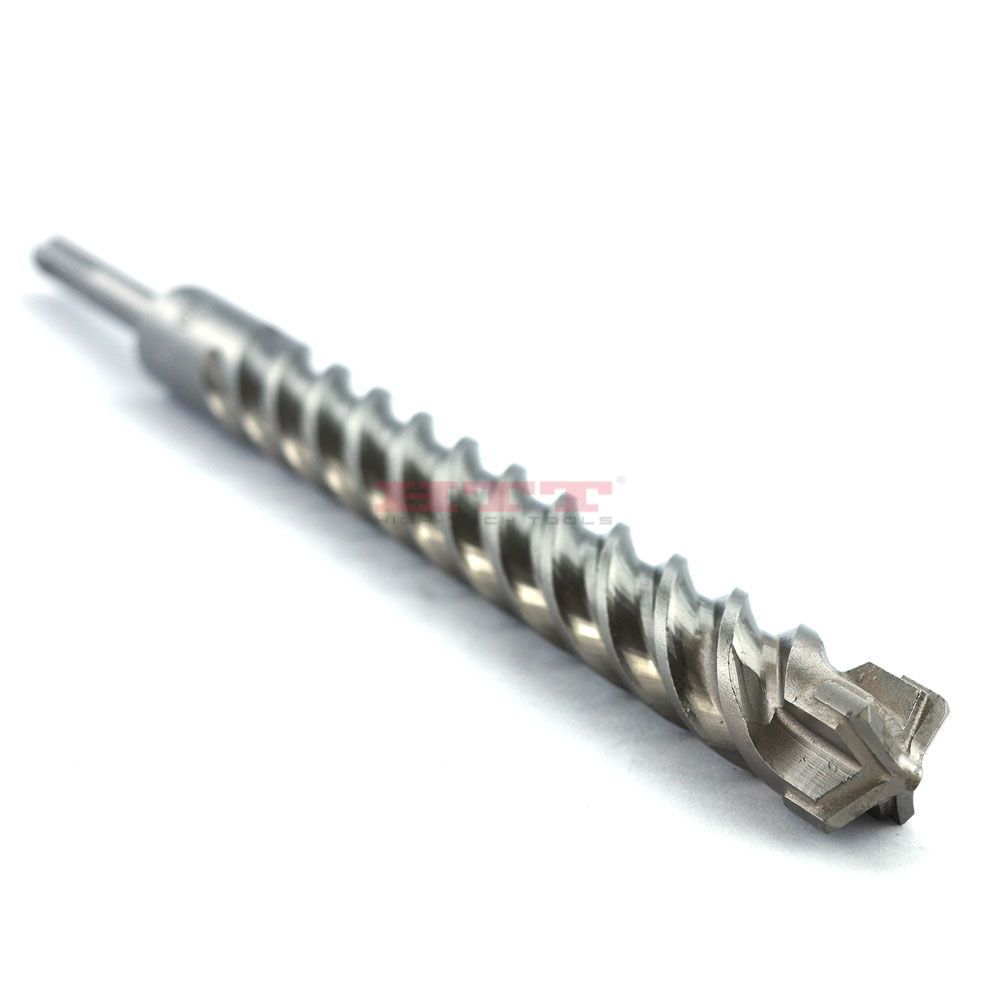

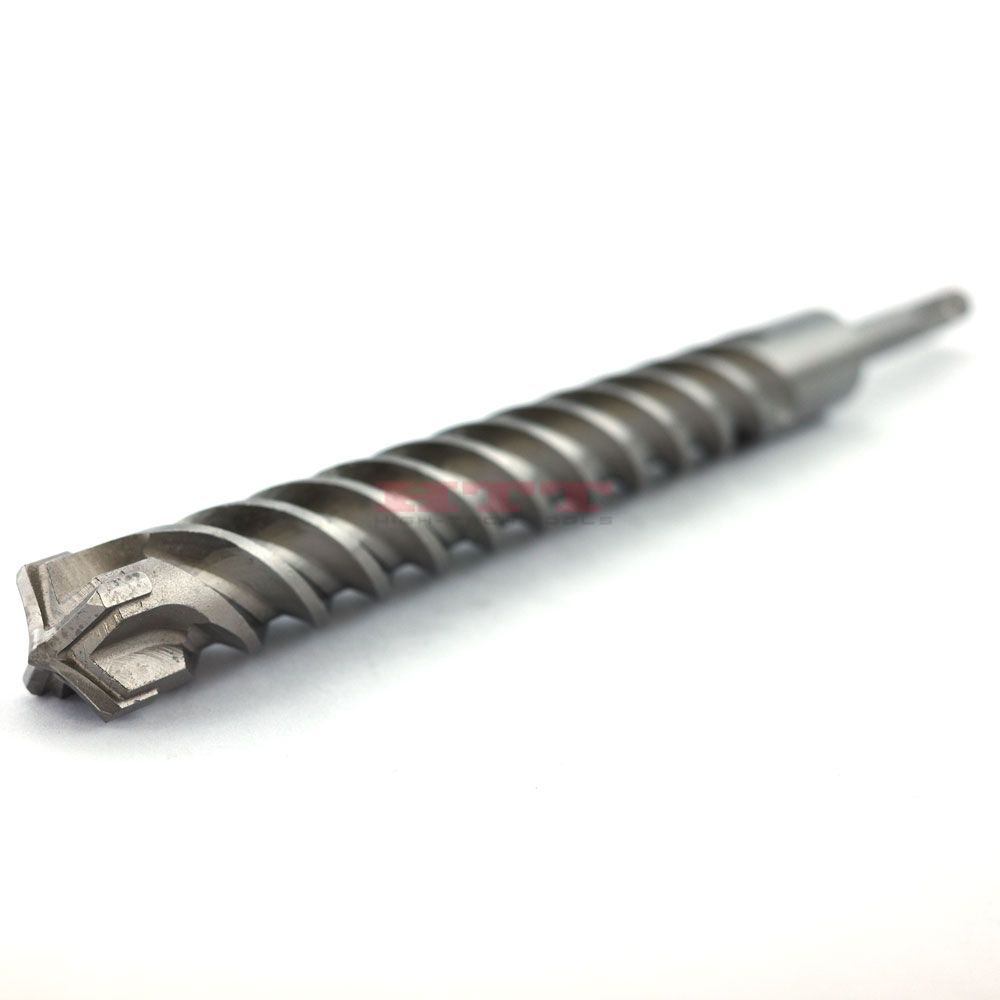

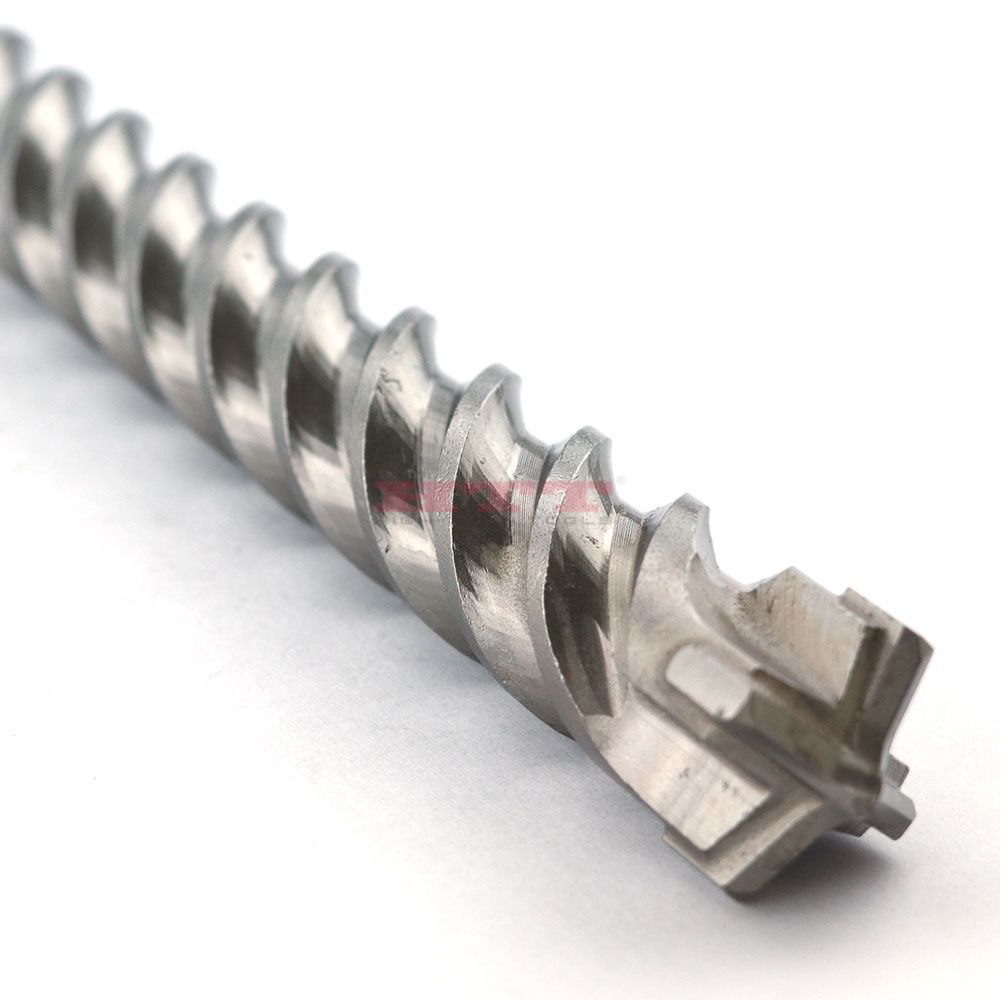

CT-4 4Cutter Hammer Drill Bit SDS-plus 4H Flutes

1, CT-4 series Ceratizit carbide on BC20 formulation from Ceratizit supply.
2, SDS-plus shank under Bosch audited to fit branded rotary hammers.
3, 4H type of flute maximizes the dust-rejection rate in faster drilling
4, Special hardened steel blank guaratees that best durability to unify the carbide drilling life.
5, Fast spiral flute angle design to increase drilling efficiency in building material.
6, Vacuum soldering holds the best welding strength of those heavy duty drilling.

  • 2819 Series

  • HTT, OEM job

  • HPP

  • To drill various concrete, brick, stone, wall cements, etc.

  • 2819

  • 5 to 35mm

  • SDS-plus

  • Masonry work

Diameter x Working Length x Overall Length:
5 x 60 x 110mm
5.5 x 60 x 110mm
6 x 60 x 110mm
6.5 x 60 x 110mm
8 x 60 x 110mm
10 x 60 x 110mm
5 x 110 x 160mm
5.5 x 110 x 160mm
6 x 110 x 160mm
6.5 x 110 x 160mm
8 x 110 x 160mm
10 x 110 x 160mm
12 x 110 x 160mm
14 x 110 x 160mm
16 x 110 x 160mm
6 x 160 x 210mm
8 x 160 x 210mm
10 x 160 x 210mm
12 x 160 x 210mm
14 x 160 x 210mm
16 x 160 x 210mm
18 x 160 x 210mm
6 x 210 x 260mm
8 x 210 x 260mm
10 x 210 x 260mm
12 x 210 x 260mm
14 x 210 x 260mm
16 x 210 x 260mm
18 x 210 x 260mm
20 x 210 x 260mm
22 x 210 x 260mm
Availability:
Quantity:
Inquire Add to Basket

Size table:

Item No.Diameter(mm)Working Length(mm)Overall Length(mm)
2819.050110 560110
2819.055110 5.560110
2819.060110 660110
2819.065110 6.560110
2819.070110 760110
2819.080110 860110
2819.100110 1060110
2819.050160 5110160
2819.055160 5.5110160
2819.060160 6110160
2819.065160 6.5110160
2819.070160 7110160
2819.080160 8110160
2819.100160 10110160
2819.120160 12110160
2819.140160 14110160
2819.160160 16110160
2819.180160 18110160
2819.200160 20110160
2819.220160 22110160
2819.240160 24110160
2819.250160 25110160
2819.260160 26110160
2819.280160 28110160
2819.300160 30110160
2819.320160 32110160
2819.350160 35110160
2819.050180 5130180
2819.055180 5.5130180
2819.060180 6130180
2819.065180 6.5130180
2819.070180 7130180
2819.080180 8130180
2819.100180 10130180
2819.050210 5160210
2819.055210 5.5160210
2819.060210 6160210
2819.065210 6.5160210
2819.070210 7160210
2819.080210 8160210
2819.100210 10160210
2819.120210 12160210
2819.140210 14160210
2819.160210 16160210
2819.180210 18160210
2819.200210 20160210
2819.220210 22160210
2819.240210 24160210
2819.250210 25160210
2819.260210 26160210
2819.280210 28160210
2819.300210 30160210
2819.320210 32160210
2819.350210 35160210
2819.050260 5210260
2819.055260 5.5210260
2819.060260 6210260
2819.065260 6.5210260
2819.070260 7210260
2819.080260 8210260
2819.100260 10210260
2819.120260 12210260
2819.140260 14210260
2819.160260 16210260
2819.180260 18210260
2819.200260 20210260
2819.220260 22210260
2819.240260 24210260
2819.250260 25210260
2819.260260 26210260
2819.280260 28210260
2819.300260 30210260
2819.320260 32210260
2819.350260 35210260
2819.050310 5260310
2819.055310 5.5260310
2819.060310 6260310
2819.065310 6.5260310
2819.070310 7260310
2819.080310 8260310
2819.100310 10260310
2819.120310 12260310
2819.140310 14260310
2819.160310 16260310
2819.180310 18260310
2819.200310 20260310
2819.220310 22260310
2819.240310 24260310
2819.250310 25260310
2819.260310 26260310
2819.280310 28260310
2819.300310 30260310
2819.320310 32260310
2819.350310 35260310
2819.050350 5300350
2819.055350 5.5300350
2819.060350 6300350
2819.065350 6.5300350
2819.070350 7300350
2819.080350 8300350
2819.100350 10300350
2819.120350 12300350
2819.140350 14300350
2819.160350 16300350
2819.180350 18300350
2819.200350 20300350
2819.220350 22300350
2819.240350 24300350
2819.250350 25300350
2819.260350 26300350
2819.280350 28300350
2819.300350 30300350
2819.320350 32300350
2819.350350 35300350
2819.050410 5360410
2819.055410 5.5360410
2819.060410 6360410
2819.065410 6.5360410
2819.070410 7360410
2819.080410 8360410
2819.100410 10360410
2819.120410 12360410
2819.140410 14360410
2819.160410 16360410
2819.180410 18360410
2819.200410 20360410
2819.220410 22360410
2819.240410 24360410
2819.250410 25360410
2819.260410 26360410
2819.280410 28360410
2819.300410 30360410
2819.320410 32360410
2819.350410 35360410
2819.050460 5410460
2819.055460 5.5410460
2819.060460 6410460
2819.065460 6.5410460
2819.070460 7410460
2819.080460 8410460
2819.100460 10410460
2819.120460 12410460
2819.140460 14410460
2819.160460 16410460
2819.180460 18410460
2819.200460 20410460
2819.220460 22410460
2819.240460 24410460
2819.250460 25410460
2819.260460 26410460
2819.280460 28410460
2819.300460 30410460
2819.320460 32410460
2819.350460 35410460
2819.060550 6500550
2819.065550 6.5500550
2819.070550 7500550
2819.080550 8500550
2819.100550 10500550
2819.120550 12500550
2819.140550 14500550
2819.160550 16500550
2819.180550 18500550
2819.200550 20500550
2819.220550 22500550
2819.240550 24500550
2819.250550 25500550
2819.260550 26500550
2819.280550 28500550
2819.300550 30500550
2819.320550 32500550
2819.350550 35500550
2819.060600 6550600
2819.065600 6.5550600
2819.070600 7550600
2819.080600 8550600
2819.100600 10550600
2819.120600 12550600
2819.140600 14550600
2819.160600 16550600
2819.180600 18550600
2819.200600 20550600
2819.220600 22550600
2819.240600 24550600
2819.250600 25550600
2819.260600 26550600
2819.280600 28550600
2819.300600 30550600
2819.320600 32550600
2819.350600 35550600
2819.080800 8750800
2819.100800 10750800
2819.120800 12750800
2819.140800 14750800
2819.160800 16750800
2819.180800 18750800
2819.200800 20750800
2819.220800 22750800
2819.240800 24750800
2819.250800 25750800
2819.260800 26750800
2819.280800 28750800
2819.300800 30750800
2819.320800 32750800
2819.350800 35750800
2819.101000 109501000
2819.121000 129501000
2819.141000 149501000
2819.161000 169501000
2819.181000 189501000
2819.201000 209501000
2819.221000 229501000
2819.241000 249501000
2819.251000 259501000
2819.261000 269501000
2819.281000 289501000
2819.301000 309501000
2819.321000 329501000
2819.351000 359501000
