Break-through Concrete Micro-Hammer Drill Bit Short SDS-plus

1, The hammering reducer generates micro percussion and keeps the walls of the block safe from damage.
2, Calibrated hole.
3, Increased anchoring strength.
4, The unshaped part of the flute provides rigidity and guides the bit along the line over the entire drilling depth.
5, The flute shape makes removal easier while drilling through insulating material.
6, Short Compatible SDS-plus Shank with Hammering reducer function.
  • 2372 Series

  • HTT , OEM job

  • HPP

  • To drill through breeze block, hollow brick specially.

  • 2372

  • 4mm to 16mm

  • Short SDS-plus

  • Masonry work

Availability:
Quantity:

Size Table:

*Download Data Sheet 2372 Series.pdf

Item Number Diameter(mm) Working Length(mm) Overall Length(mm)
2372.040160  4 110 160
2372.050160  5 110 160
2372.055160  5.5 110 160
2372.060160  6 110 160
2372.065160  6.5 110 160
2372.070160  7 110 160
2372.080160  8 110 160
2372.090160  9 110 160
2372.100160  10 110 160
2372.110160  11 110 160
2372.120160  12 110 160
2372.130160  13 110 160
2372.140160  14 110 160
2372.160160  16 110 160
2372.040180  4 130 180
2372.050180  5 130 180
2372.055180  5.5 130 180
2372.060180  6 130 180
2372.065180  6.5 130 180
2372.080180  8 130 180
2372.100180  10 130 180
2372.050210  5 160 210
2372.055210  5.5 160 210
2372.060210  6 160 210
2372.065210  6.5 160 210
2372.070210  7 160 210
2372.080210  8 160 210
2372.090210  9 160 210
2372.100210  10 160 210
2372.110210  11 160 210
2372.120210  12 160 210
2372.130210  13 160 210
2372.140210  14 160 210
2372.160210  16 160 210
2372.050260  5 210 260
2372.055260  5.5 210 260
2372.060260  6 210 260
2372.065260  6.5 210 260
2372.070260  7 210 260
2372.080260  8 210 260
2372.090260  9 210 260
2372.100260  10 210 260
2372.110260  11 210 260
2372.120260  12 210 260
2372.130260  13 210 260
2372.140260  14 210 260
2372.160260  16 210 260
2372.050310  5 260 310
2372.055310  5.5 260 310
2372.060310  6 260 310
2372.065310  6.5 260 310
2372.070310  7 260 310
2372.080310  8 260 310
2372.090310  9 260 310
2372.100310  10 260 310
2372.110310  11 260 310
2372.120310  12 260 310
2372.130310  13 260 310
2372.140310  14 260 310
2372.160310  16 260 310
2372.050350  5 300 350
2372.055350  5.5 300 350
2372.060350  6 300 350
2372.065350  6.5 300 350
2372.070350  7 300 350
2372.080350  8 300 350
2372.090350  9 300 350
2372.100350  10 300 350
2372.110350  11 300 350
2372.120350  12 300 350
2372.130350  13 300 350
2372.140350  14 300 350
2372.160350  16 300 350
2372.050410  5 360 410
2372.055410  5.5 360 410
2372.060410  6 360 410
2372.065410  6.5 360 410
2372.070410  7 360 410
2372.080410  8 360 410
2372.090410  9 360 410
2372.100410  10 360 410
2372.110410  11 360 410
2372.120410  12 360 410
2372.130410  13 360 410
2372.140410  14 360 410
2372.160410  16 360 410
2372.050460  5 410 460
2372.055460  5.5 410 460
2372.060460  6 410 460
2372.065460  6.5 410 460
2372.070460  7 410 460
2372.080460  8 410 460
2372.090460  9 410 460
2372.100460  10 410 460
2372.110460  11 410 460
2372.120460  12 400 460
2372.130460  13 400 460
2372.140460  14 400 460
2372.160460  16 400 460
2372.060550  6 500 550
2372.065550  6.5 500 550
2372.070550  7 500 550
2372.080550  8 500 550
2372.090550  9 500 550
2372.100550  10 500 550
2372.110550  11 500 550
2372.120550  12 500 550
2372.130550  13 500 550
2372.140550  14 500 550
2372.160550  16 500 550
2372.060600  6 550 600
2372.065600  6.5 550 600
2372.070600  7 550 600
2372.080600  8 550 600
2372.090600  9 550 600
2372.100600  10 550 600
2372.110600  11 550 600
2372.120600  12 550 600
2372.130600  13 550 600
2372.140600  14 550 600
2372.160600  16 550 600
2372.080800  8 750 800
2372.090800  9 750 800
2372.100800  10 750 800
2372.110800  11 750 800
2372.120800  12 750 800
2372.130800  13 750 800
2372.140800  14 750 800
2372.160800  16 750 800

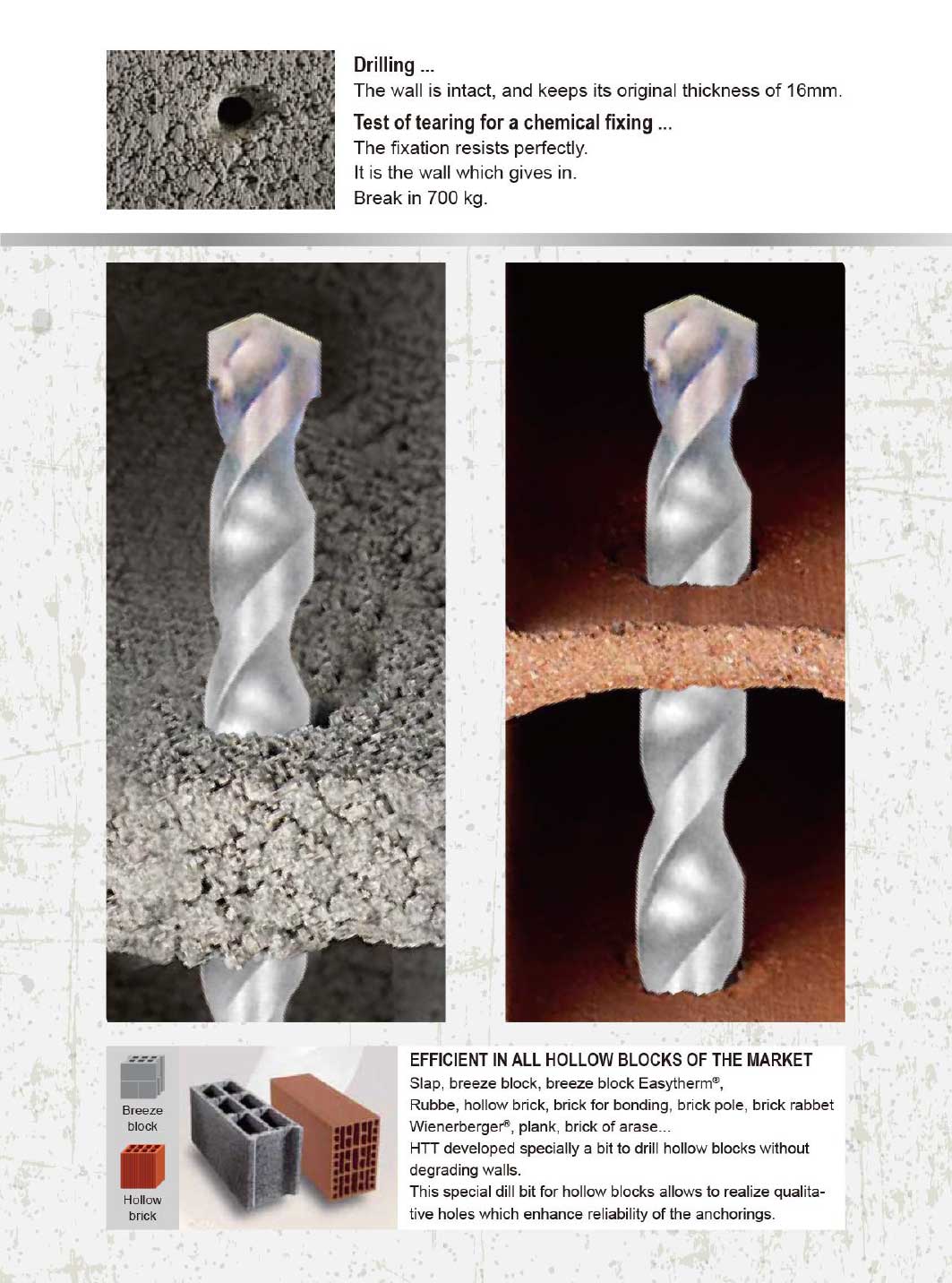

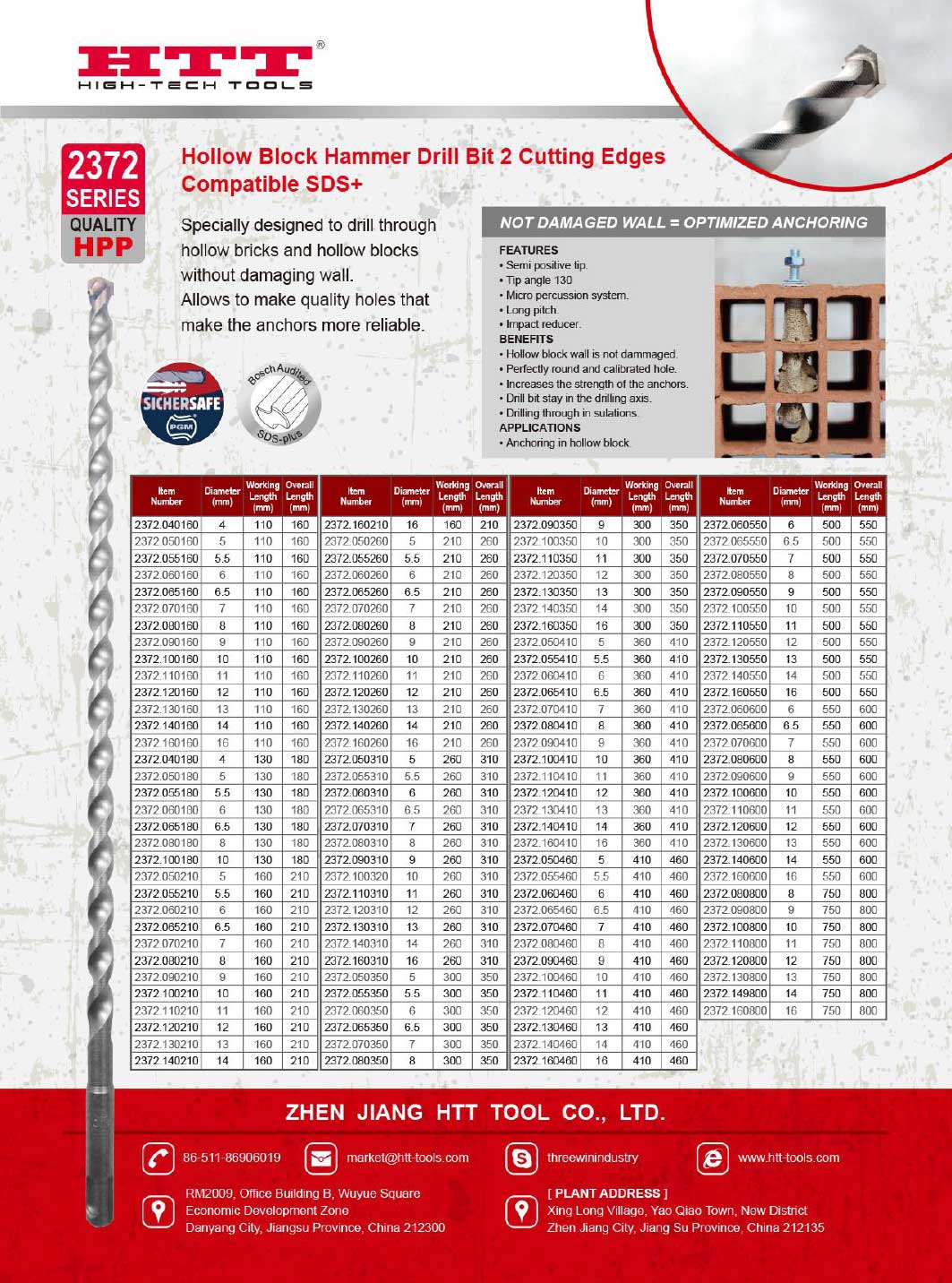

Flyer-2372-FE-2Flyer-2372-FE-1
