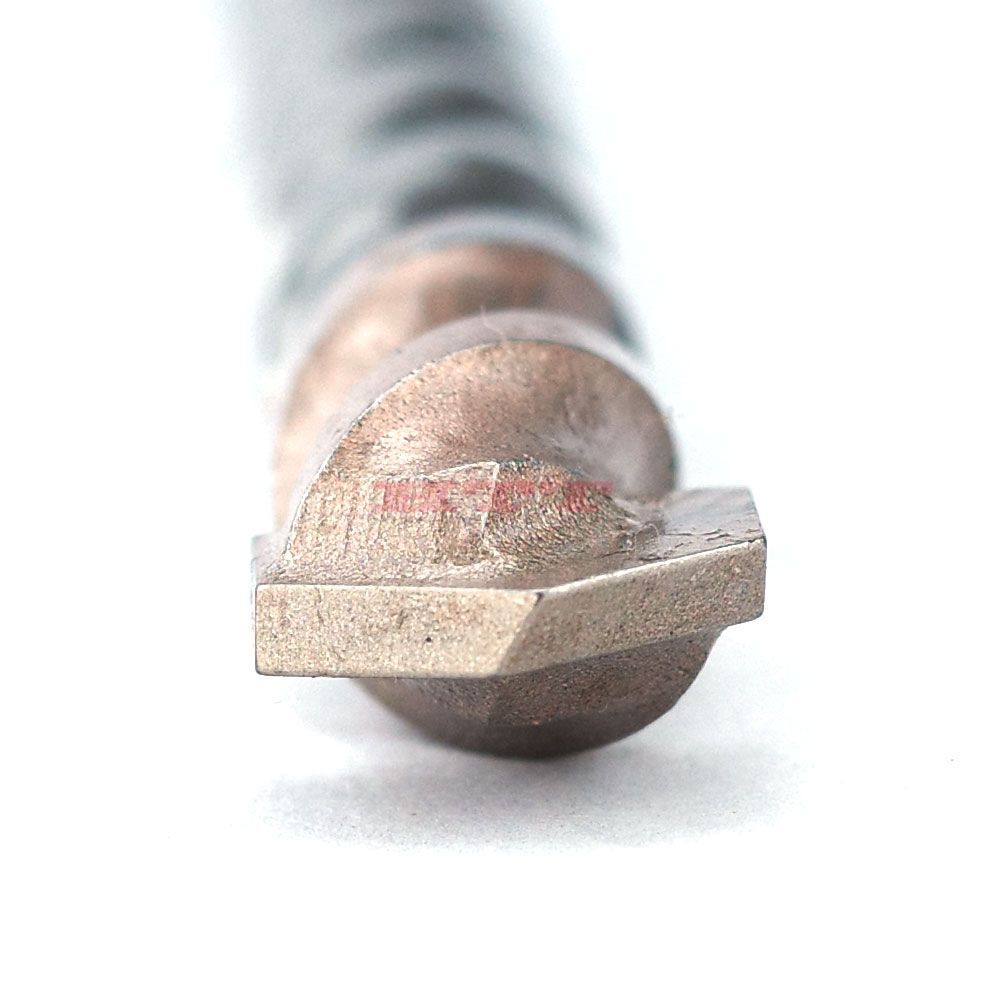

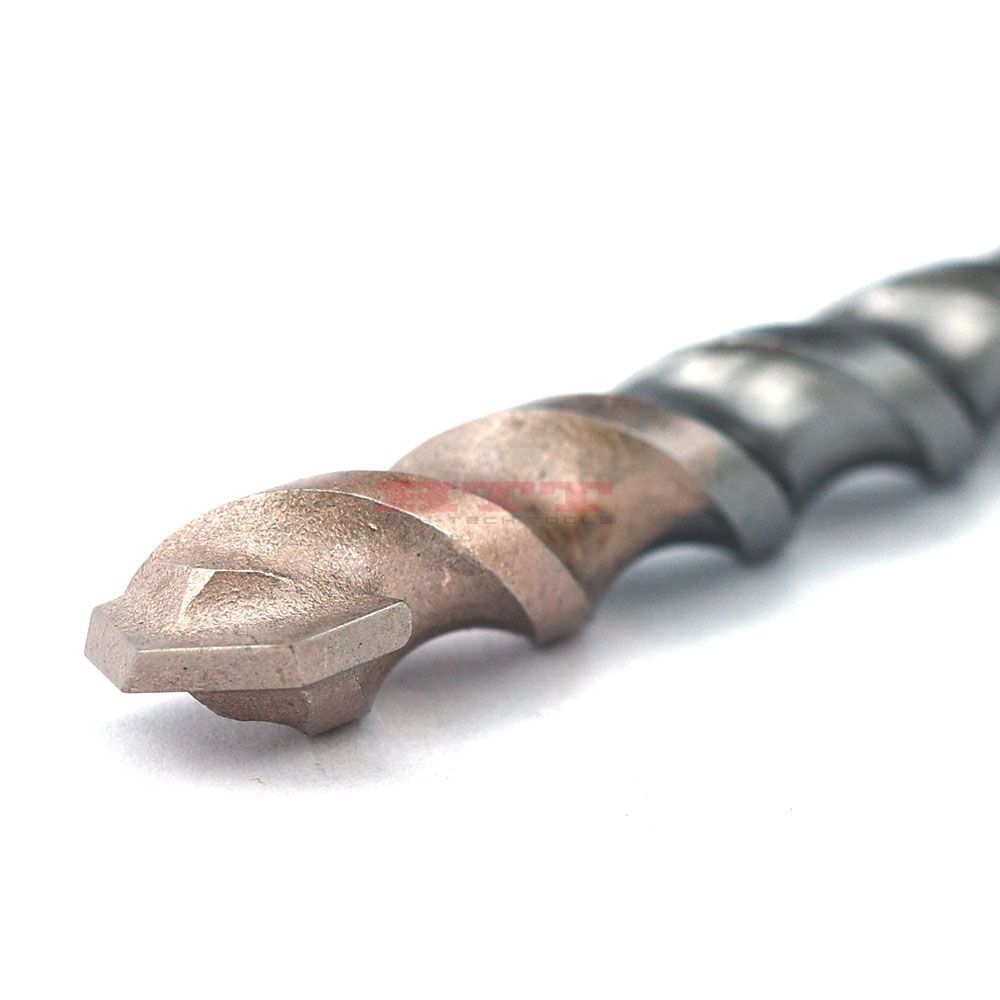

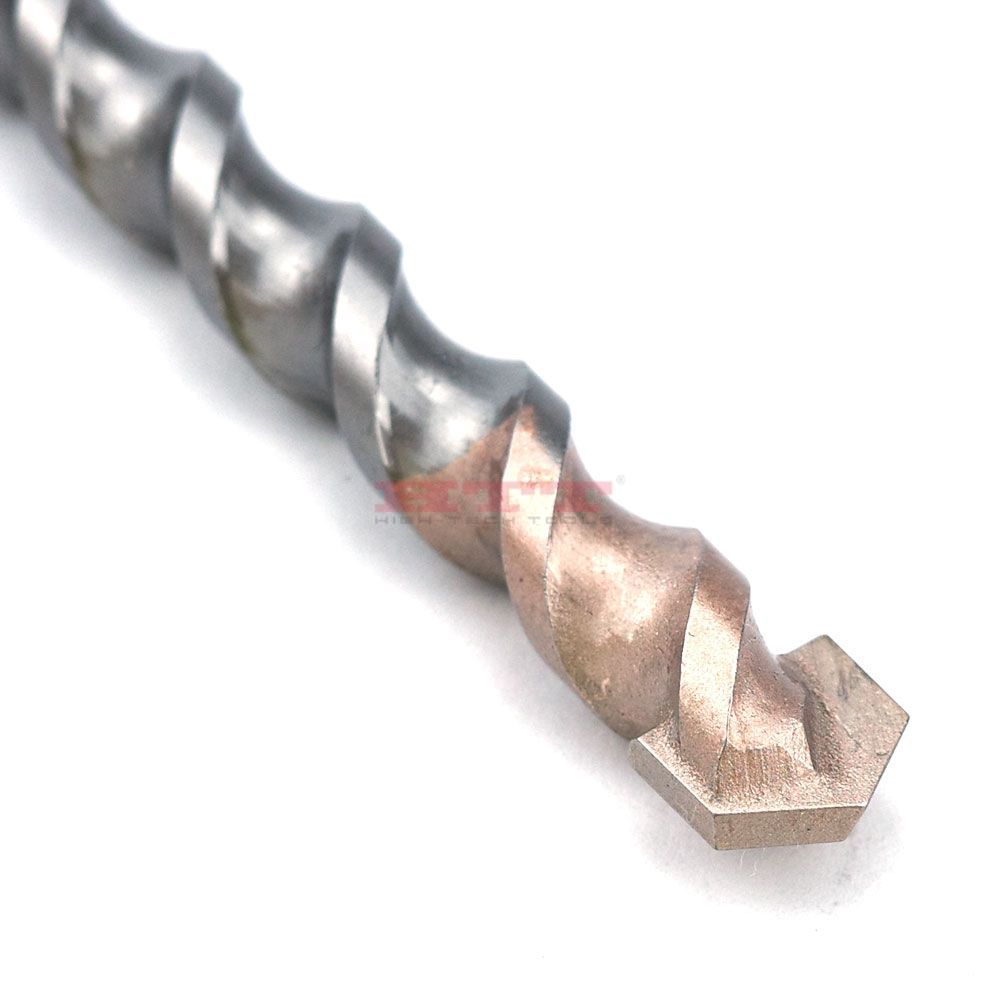

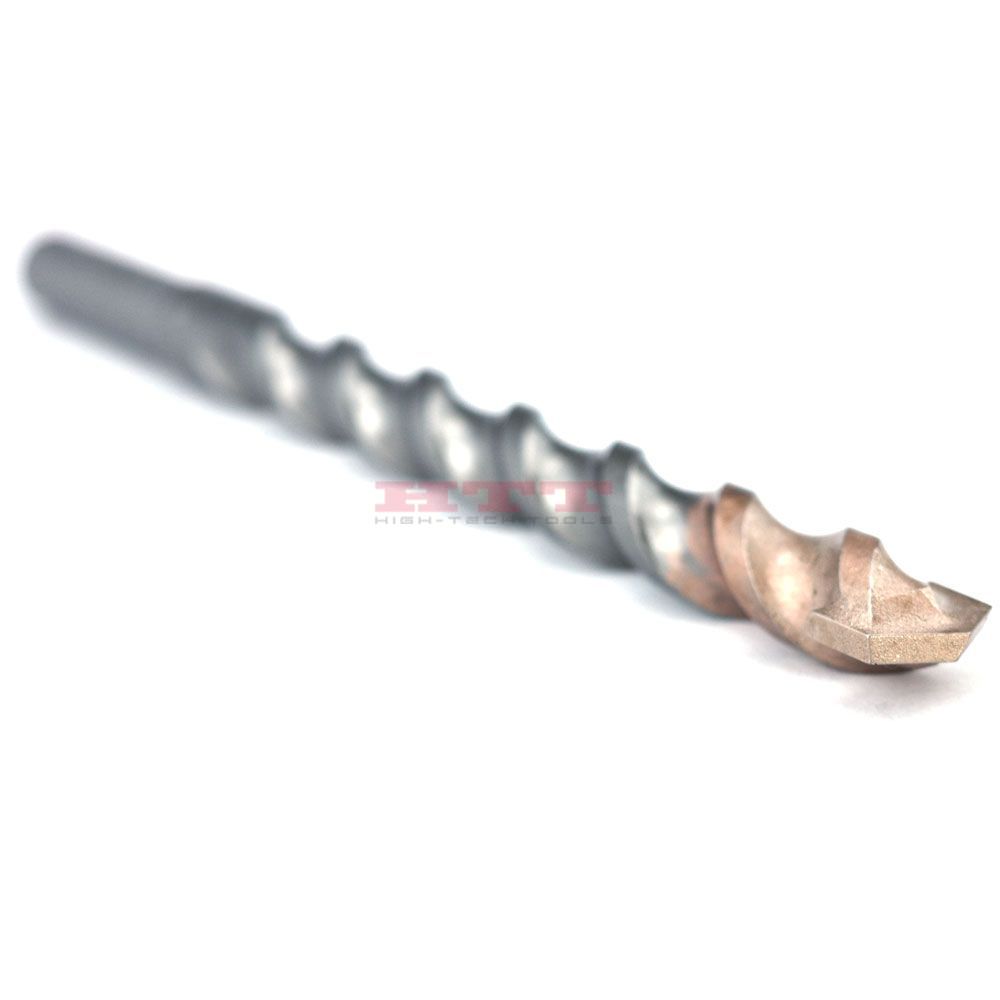

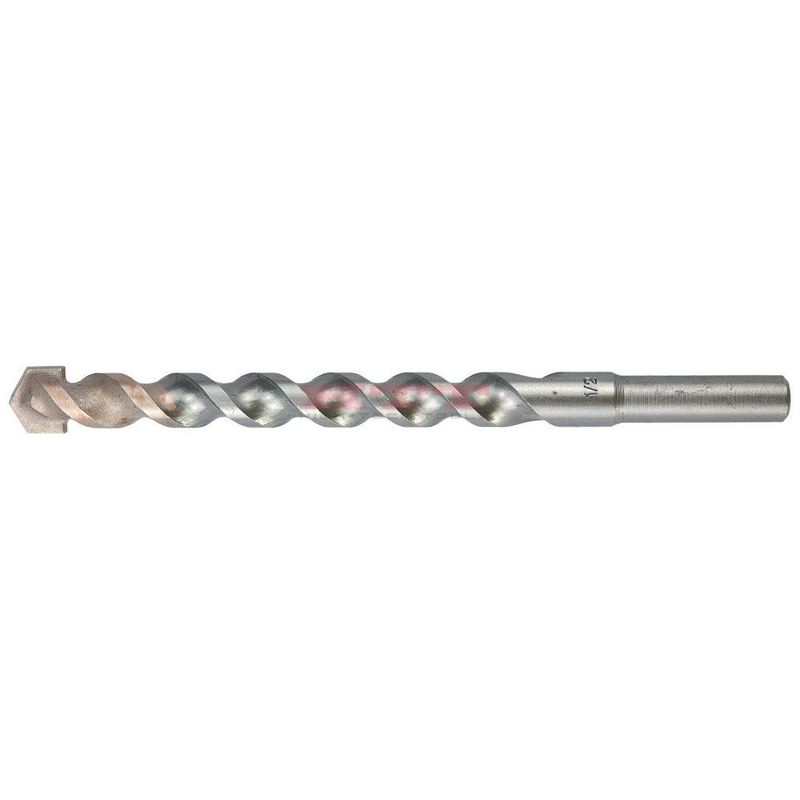

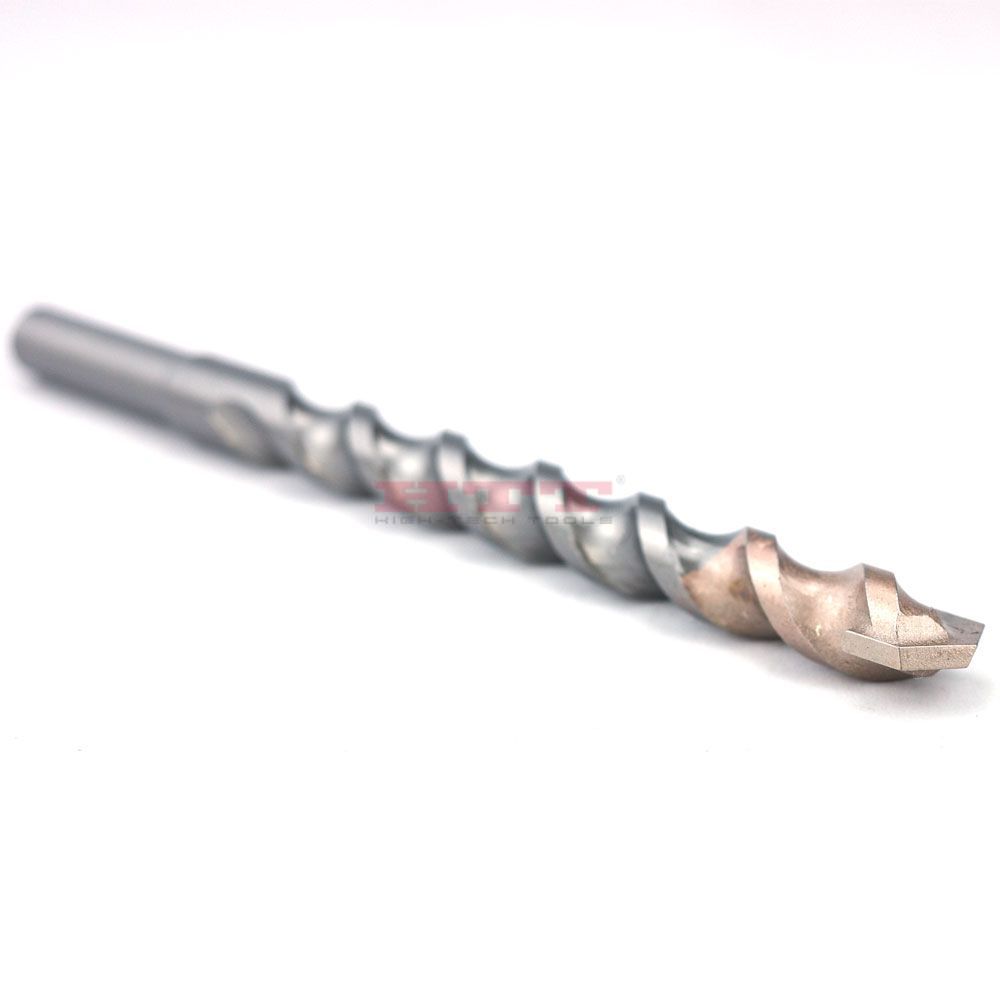

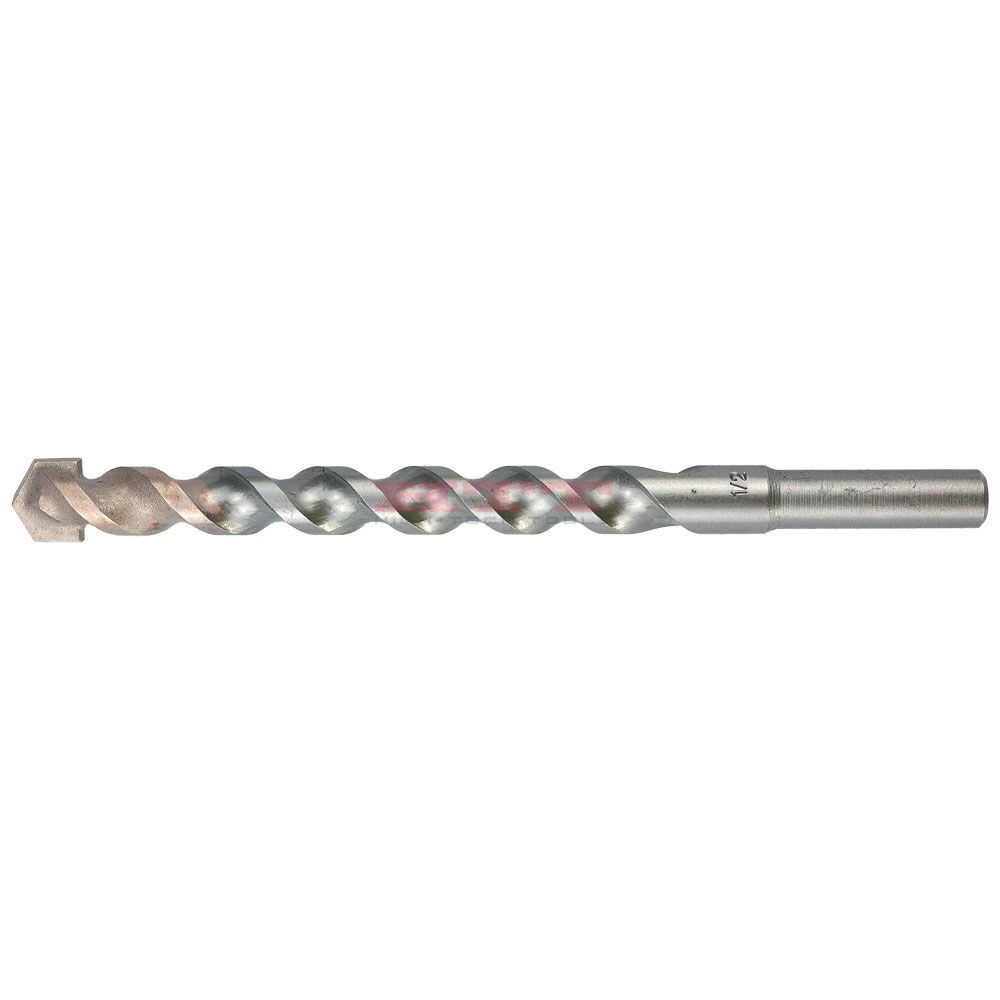

3033 Series
HTT, OEM job
HPP
To drill holes in various concrete, masonry building material wall, floor, etc.
3033
1/8" to 1"
Cylinder
Masonry work
| Quantity: | |
|---|---|
Size Table:
*Note: Diameter 1/2" to 3/4" ones are with the reduced cylinder shank 3/8" diameter.
Diameter 7/8" to 1" ones are with the reduced cylinder shank 1/2" diameter.
| Item Number | Diameter(inch) | Working Length(inch) | Overall Length(inch) |
| 3033.0108212 | 1/8“ | 1“ | 2-1/2“ |
| 3033.0108300 | 1/8" | 1-1/2“ | 3” |
| 3033.0108312 | 1/8" | 2" | 3-1/2" |
| 3033.0532300 | 5/32" | 1-1/2“ | 3" |
| 3033.0532312 | 5/32" | 2" | 3-1/2" |
| 3033.0532600 | 5/32" | 4-1/2" | 6" |
| 3033.0316312 | 3/16" | 1-1/2“ | 3-1/2" |
| 3033.0316334 | 3/16" | 2" | 3-3/4" |
| 3033.0316400 | 3/16" | 2-1/4" | 4" |
| 3033.0316600 | 3/16" | 4-1/2" | 6" |
| 3033.0316100 | 3/16" | 8-1/2" | 10" |
| 3033.0316120 | 3/16" | 10" | 12" |
| 3033.0316160 | 3/16" | 12" | 16" |
| 3033.0316200 | 3/16" | 14" | 20" |
| 3033.0732400 | 7/32" | 2-1/4" | 4" |
| 3033.0732600 | 7/32" | 4-1/2" | 6" |
| 3033.0732800 | 7/32" | 5-1/2" | 8" |
| 3033.0732100 | 7/32" | 8-1/2" | 10" |
| 3033.0732120 | 7/32" | 10" | 12" |
| 3033.0732160 | 7/32" | 12" | 16" |
| 3033.0732400 | 7/32" | 16" | 24" |
| 3033.0104400 | 1/4" | 2-1/4" | 4" |
| 3033.0104600 | 1/4" | 4-1/2" | 6" |
| 3033.0104800 | 1/4" | 5-1/2" | 8" |
| 3033.0104100 | 1/4" | 8-1/2" | 10" |
| 3033.0104120 | 1/4" | 10" | 12" |
| 3033.0104160 | 1/4" | 12" | 16" |
| 3033.0932400 | 9/32" | 2-1/4" | 4" |
| 3033.0932500 | 9/32" | 3-1/4" | 5" |
| 3033.0932600 | 9/32" | 4-1/2" | 6" |
| 3033.0932120 | 9/32" | 10" | 12" |
| 3033.0932160 | 9/32" | 12" | 16" |
| 3033.0932200 | 9/32" | 14" | 20" |
| 3033.0516400 | 5/16" | 2-1/4" | 4" |
| 3033.0516600 | 5/16" | 4-1/2" | 6" |
| 3033.0516800 | 5/16" | 5-1/2" | 8" |
| 3033.0516100 | 5/16" | 8-1/2" | 10" |
| 3033.0516120 | 5/16" | 10" | 12" |
| 3033.0516160 | 5/16" | 12" | 16" |
| 3033.0516240 | 5/16" | 16" | 24" |
| 3033.0308400 | 3/8" | 2-1/4" | 4" |
| 3033.0308600 | 3/8" | 4-1/2" | 6" |
| 3033.0308800 | 3/8" | 5-1/2“ | 8" |
| 3033.0308100 | 3/8" | 8-1/2” | 10" |
| 3033.0308120 | 3/8" | 10“ | 12" |
| 3033.0308160 | 3/8" | 12” | 16" |
| 3033.0308240 | 3/8" | 16“ | 24" |
| 3033.0102400 | 1/2“ | 2-1/4“ | 4“ |
| 3033.0102600 | 1/2” | 4-1/2" | 6” |
| 3033.0102800 | 1/2“ | 5-1/2” | 8“ |
| 3033.0102120 | 1/2” | 10“ | 12” |
| 3033.0916600 | 9/16“ | 4“ | 6“ |
| 3033.0916800 | 9/16“ | 5-1/2" | 8" |
| 3033.0916100 | 9/16“ | 8-1/2" | 10" |
| 3033.0916120 | 9/16“ | 10" | 12" |
| 3033.0916160 | 9/16“ | 12" | 16" |
| 3033.0916240 | 9/16“ | 16" | 24" |
| 3033.0508600 | 5/8“ | 4“ | 6“ |
| 3033.0508800 | 5/8“ | 5-1/2" | 8" |
| 3033.0508100 | 5/8“ | 8-1/2" | 10" |
| 3033.0508120 | 5/8“ | 10" | 12" |
| 3033.0508160 | 5/8“ | 12" | 16" |
| 3033.0508240 | 5/8“ | 16" | 24" |
| 3033.0304600 | 3/4“ | 4“ | 6“ |
| 3033.0304800 | 3/4“ | 5-1/2" | 8" |
| 3033.0304100 | 3/4“ | 8-1/2" | 10" |
| 3033.0304120 | 3/4“ | 10" | 12" |
| 3033.0304160 | 3/4“ | 12" | 16" |
| 3033.0304240 | 3/4“ | 16" | 24" |
| 3033.0708600 | 7/8“ | 4“ | 6“ |
| 3033.0708800 | 7/8“ | 5-1/2" | 8" |
| 3033.0708120 | 7/8“ | 10" | 12" |
| 3033.0708160 | 7/8“ | 12" | 16" |
| 3033.1000600 | 1“ | 4" | 6“ |
| 3033.1000800 | 1” | 5-1/2" | 8" |
| 3033.1000120 | 1“ | 10" | 12" |
| 3033.1000160 | 1” | 12" | 16" |
