2Cutter Hammer Drill Bit SDS-plus

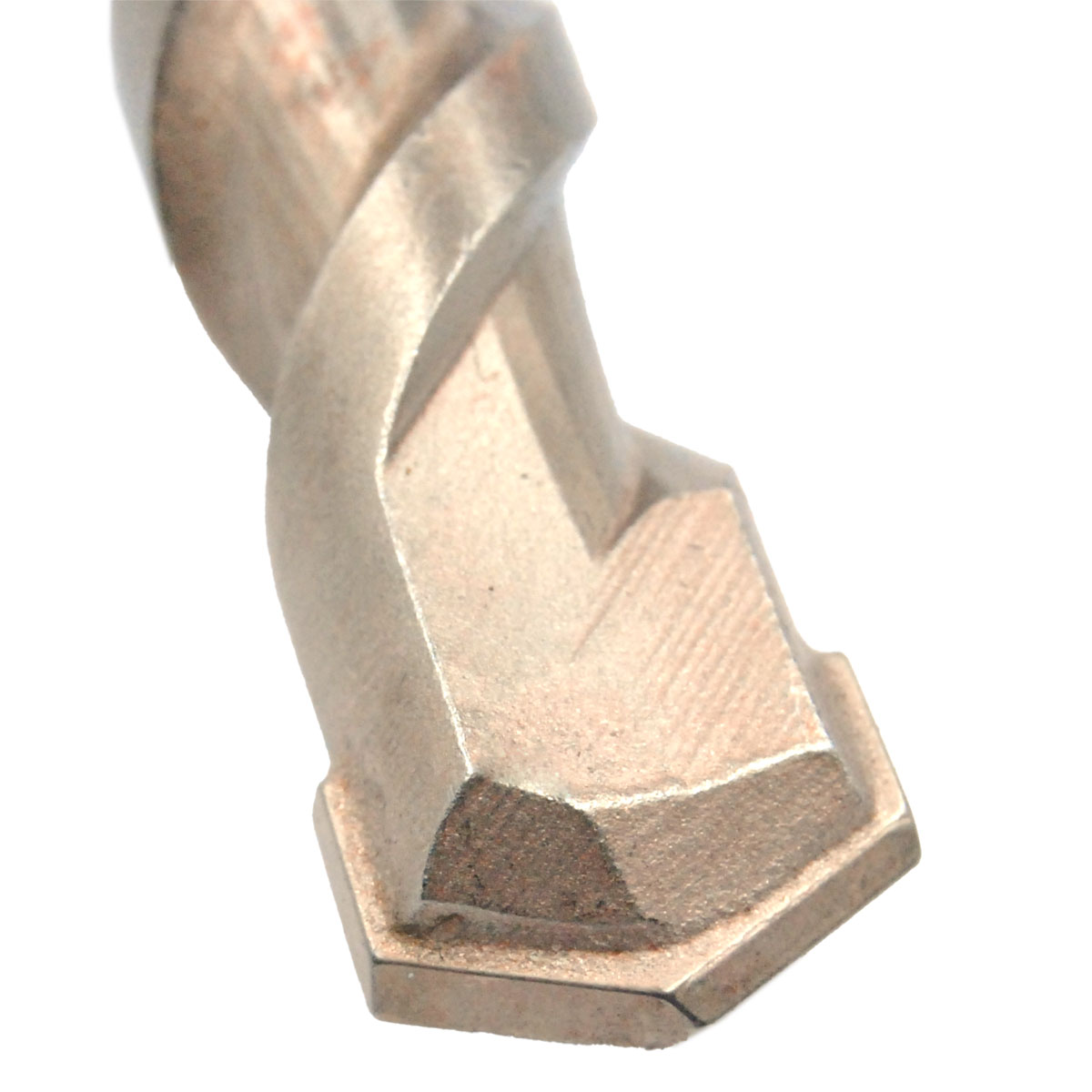

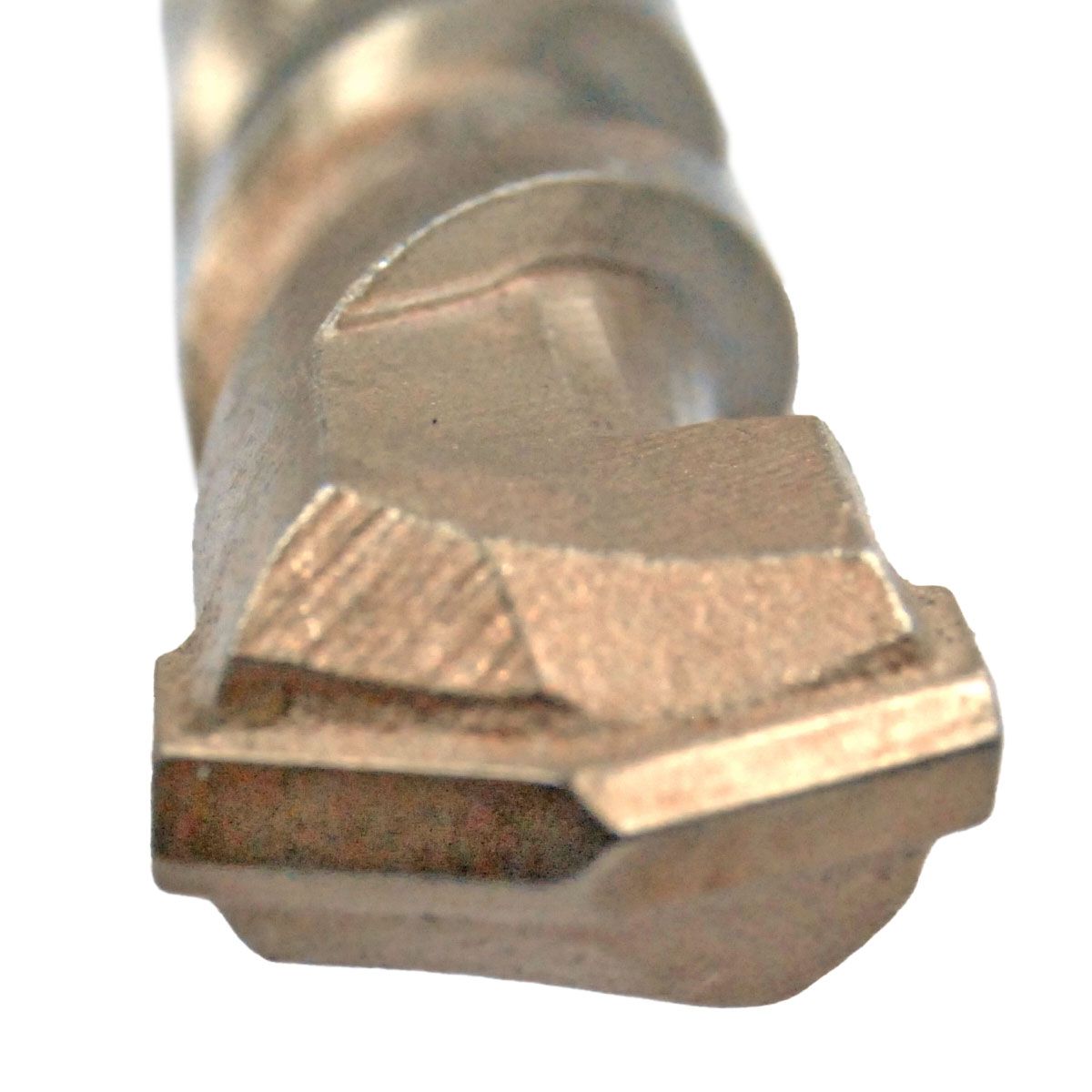

1, DD carbide 130degree tip point .
2, SDS-plus shank under Bosch audited to fit branded rotary hammers.
3, H type of flute maximizes the dust-rejection rate in faster drilling.
4, Special hardened steel blank guaratees that best durability to unify the carbide drilling life.
5, Fast spiral flute angle design to increase drilling efficiency in building material.
6, Design for all concrete,stone and bricks drilling.
7, Vacuum soldering holds the best welding strength of those heavy duty drilling.
8, PGM certificated quality support to the high drilling work demands.

  • 20017 Series
  • HTT, OEM job
  • MPP
  • To drill various concrete, brick, stone, wall cements, etc.
  • 20017
  • 4 to 30mm
  • SDS-plus
  • Masonry work
Diameter x Working Length x Overall Length:
Quantity:

Size table:

Item No.Diameter(mm)Working Length(mm)Overall Length(mm)
20017.040110 460110
20017.050110 560110
20017.055110 5.560110
20017.060110 660110
20017.065110 6.560110
20017.070110 760110
20017.080110 860110
20017.090110 960110
20017.100110 1060110
20017.110110 1160110
20017.040160 4110160
20017.050160 5110160
20017.055160 5.5110160
20017.060160 6110160
20017.065160 6.5110160
20017.070160 7110160
20017.080160 8110160
20017.090160 9110160
20017.100160 10110160
20017.110160 11110160
20017.120160 12110160
20017.130160 13110160
20017.140160 14110160
20017.150160 15110160
20017.160160 16110160
20017.180160 18110160
20017.190160 19110160
20017.200160 20110160
20017.220160 22110160
20017.240160 24110160
20017.250160 25110160
20017.260160 26110160
20017.280160 28110160
20017.300160 30110160
20017.040180 4130180
20017.050180 5130180
20017.055180 5.5130180
20017.060180 6130180
20017.065180 6.5130180
20017.080180 8130180
20017.100180 10130180
20017.050210 5160210
20017.055210 5.5160210
20017.060210 6160210
20017.065210 6.5160210
20017.070210 7160210
20017.080210 8160210
20017.090210 9160210
20017.100210 10160210
20017.110210 11160210
20017.120210 12160210
20017.130210 13160210
20017.140210 14160210
20017.150210 15160210
20017.160210 16160210
20017.180210 18160210
20017.190210 19160210
20017.200210 20160210
20017.220210 22160210
20017.240210 24160210
20017.250210 25160210
20017.260210 26160210
20017.280210 28160210
20017.300210 30160210
20017.050260 5210260
20017.055260 5.5210260
20017.060260 6210260
20017.065260 6.5210260
20017.070260 7210260
20017.080260 8210260
20017.090260 9210260
20017.100260 10210260
20017.110260 11210260
20017.120260 12210260
20017.130260 13210260
20017.140260 14210260
20017.150260 15210260
20017.160260 16210260
20017.180260 18210260
20017.190260 19210260
20017.200260 20210260
20017.220260 22210260
20017.240260 24210260
20017.250260 25210260
20017.260260 26210260
20017.280260 28210260
20017.300260 30210260
20017.050310 5260310
20017.055310 5.5260310
20017.060310 6260310
20017.065310 6.5260310
20017.070310 7260310
20017.080310 8260310
20017.090310 9260310
20017.100310 10260310
20017.110310 11260310
20017.120310 12260310
20017.130310 13260310
20017.140310 14260310
20017.150310 15260310
20017.160310 16260310
20017.180310 18260310
20017.190310 19260310
20017.200310 20260310
20017.220310 22260310
20017.240310 24260310
20017.250310 25260310
20017.260310 26260310
20017.280310 28260310
20017.300310 30260310
20017.050350 5300350
20017.055350 5.5300350
20017.060350 6300350
20017.065350 6.5300350
20017.070350 7300350
20017.080350 8300350
20017.090350 9300350
20017.100350 10300350
20017.110350 11300350
20017.120350 12300350
20017.130350 13300350
20017.140350 14300350
20017.150350 15300350
20017.160350 16300350
20017.180350 18300350
20017.190350 19300350
20017.200350 20300350
20017.220350 22300350
20017.240350 24300350
20017.250350 25300350
20017.260350 26300350
20017.280350 28300350
20017.300350 30300350
20017.050410 5360410
20017.055410 5.5360410
20017.060410 6360410
20017.065410 6.5360410
20017.070410 7360410
20017.080410 8360410
20017.090410 9360410
20017.100410 10360410
20017.110410 11360410
20017.120410 12360410
20017.130410 13360410
20017.140410 14360410
20017.150410 15360410
20017.160410 16360410
20017.180410 18360410
20017.190410 19360410
20017.200410 20360410
20017.220410 22360410
20017.240410 24360410
20017.250410 25360410
20017.260410 26360410
20017.280410 28360410
20017.300410 30360410
20017.050460 5410460
20017.055460 5.5410460
20017.060460 6410460
20017.065460 6.5410460
20017.070460 7410460
20017.080460 8410460
20017.090460 9410460
20017.100460 10410460
20017.110460 11410460
20017.120450 12400450
20017.130450 13400450
20017.140450 14400450
20017.150450 15400450
20017.160450 16400450
20017.180450 18400450
20017.190450 19400450
20017.200450 20400450
20017.220450 22400450
20017.240450 24400450
20017.250450 25400450
20017.260450 26400450
20017.280450 28400450
20017.300450 30400450
20017.060550 6500550
20017.065550 6.5500550
20017.070550 7500550
20017.080550 8500550
20017.090550 9500550
20017.100550 10500550
20017.110550 11500550
20017.120550 12500550
20017.130550 13500550
20017.140550 14500550
20017.150550 15500550
20017.160550 16500550
20017.180550 18500550
20017.190550 19500550
20017.200550 20500550
20017.220550 22500550
20017.240550 24500550
20017.250550 25500550
20017.260550 26500550
20017.280550 28500550
20017.300550 30500550
20017.060600 6550600
20017.065600 6.5550600
20017.070600 7550600
20017.080600 8550600
20017.090600 9550600
20017.100600 10550600
20017.110600 11550600
20017.120600 12550600
20017.130600 13550600
20017.140600 14550600
20017.150600 15550600
20017.160600 16550600
20017.180600 18550600
20017.190600 19550600
20017.200600 20550600
20017.220600 22550600
20017.240600 24550600
20017.250600 25550600
20017.260600 26550600
20017.280600 28550600
20017.300600 30550600
20017.080800 8750800
20017.090800 9750800
20017.100800 10750800
20017.110800 11750800
20017.120800 12750800
20017.130800 13750800
20017.140800 14750800
20017.150800 15750800
20017.160800 16750800
20017.180800 18750800
20017.190800 19750800
20017.200800 20750800
20017.220800 22750800
20017.240800 24750800
20017.250800 25750800
20017.260800 26750800
20017.280800 28750800
20017.300800 30750800
20017.101000 109501000
20017.111000 119501000
20017.121000 129501000
20017.131000 139501000
20017.141000 149501000
20017.151000 159501000
20017.161000 169501000
20017.181000 189501000
20017.191000 199501000
20017.201000 209501000
20017.221000 229501000
20017.241000 249501000
20017.251000 259501000
20017.261000 269501000
20017.281000 289501000
20017.301000 309501000
