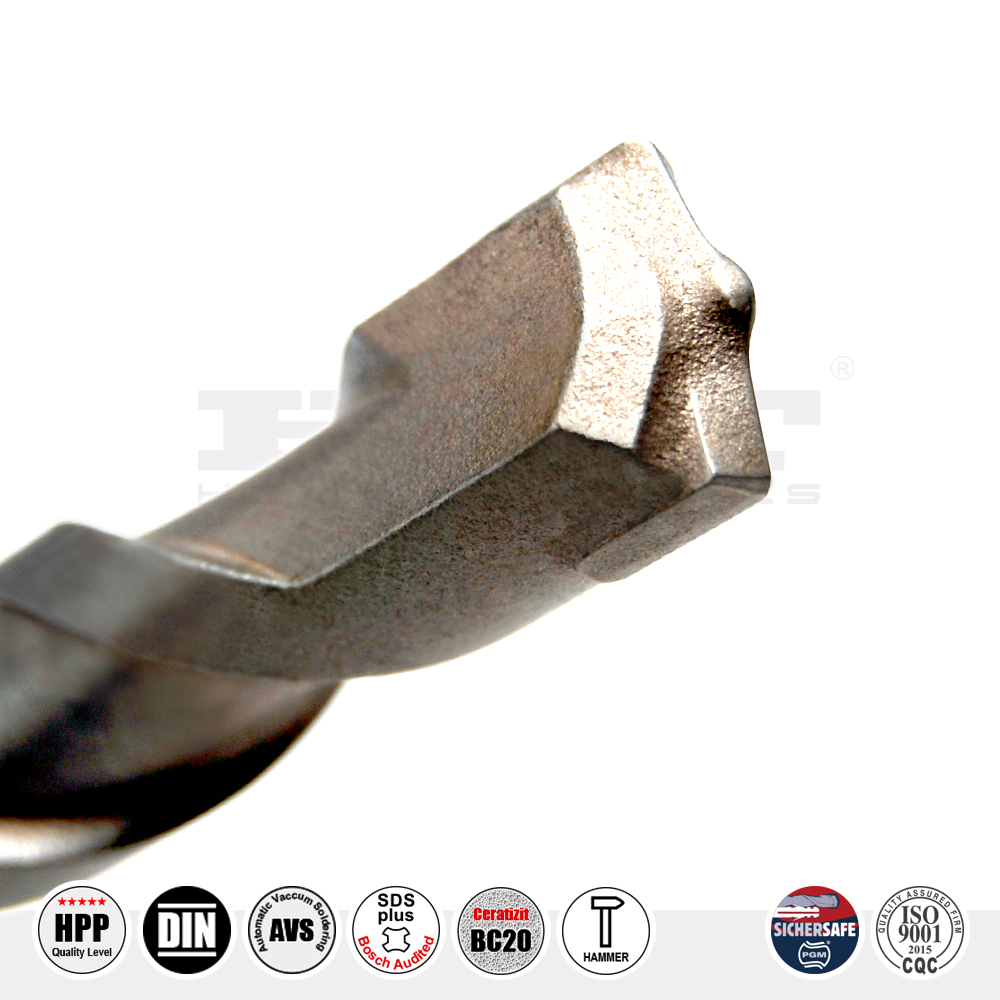

2Cutter Hammer Drill Bit SDS-plus

1, Ceratizit Splus outline shape for precision and professional drilling performance.
2, SDS-plus shank under Bosch audited to fit branded rotary hammers.
3, H type of flute maximizes the dust-rejection rate in faster drilling.
4, Special hardened steel blank guaratees that best durability to unify the carbide drilling life.
5, Fast spiral flute angle design to increase drilling efficiency in building material.
6, Vacuum soldering holds the best welding strength of those heavy duty drilling.
7, PGM certificated quality support to the high drilling work demands.

  • 2020 Series

  • HTT, OEM job

  • HPP

  • To drill various concrete, brick, stone, wall cements, etc.

  • 2020

  • 4 to 30mm

  • SDS-plus

  • Masonry work

Diameter x Working Length x Overall Length:
5 x 60 x 110mm
5.5 x 60 x 110mm
6 x 60 x 110mm
6.5 x 60 x 110mm
8 x 60 x 110mm
10 x 60 x 110mm
5 x 110 x 160mm
5.5 x 110 x 160mm
6 x 110 x 160mm
6.5 x 110 x 160mm
8 x 110 x 160mm
10 x 110 x 160mm
12 x 110 x 160mm
14 x 110 x 160mm
16 x 110 x 160mm
6 x 160 x 210mm
8 x 160 x 210mm
10 x 160 x 210mm
12 x 160 x 210mm
14 x 160 x 210mm
16 x 160 x 210mm
18 x 160 x 210mm
6 x 210 x 260mm
8 x 210 x 260mm
10 x 210 x 260mm
12 x 210 x 260mm
14 x 210 x 260mm
16 x 210 x 260mm
18 x 210 x 260mm
20 x 210 x 260mm
22 x 210 x 260mm
Availability:
Quantity:
Inquire Add to Basket

Size table:

Item No. Diameter(mm) Working Length(mm) Overall Length(mm)
2020.040110  4 60 110
2020.050110  5 60 110
2020.055110  5.5 60 110
2020.060110  6 60 110
2020.065110  6.5 60 110
2020.070110  7 60 110
2020.080110  8 60 110
2020.090110  9 60 110
2020.100110  10 60 110
2020.110110  11 60 110
2020.040160  4 110 160
2020.050160  5 110 160
2020.055160  5.5 110 160
2020.060160  6 110 160
2020.065160  6.5 110 160
2020.070160  7 110 160
2020.080160  8 110 160
2020.090160  9 110 160
2020.100160  10 110 160
2020.110160  11 110 160
2020.120160  12 110 160
2020.130160  13 110 160
2020.140160  14 110 160
2020.150160  15 110 160
2020.160160  16 110 160
2020.180160  18 110 160
2020.190160  19 110 160
2020.200160  20 110 160
2020.220160  22 110 160
2020.240160  24 110 160
2020.250160  25 110 160
2020.260160  26 110 160
2020.280160  28 110 160
2020.300160  30 110 160
2020.040180  4 130 180
2020.050180  5 130 180
2020.055180  5.5 130 180
2020.060180  6 130 180
2020.065180  6.5 130 180
2020.080180  8 130 180
2020.100180  10 130 180
2020.050210  5 160 210
2020.055210  5.5 160 210
2020.060210  6 160 210
2020.065210  6.5 160 210
2020.070210  7 160 210
2020.080210  8 160 210
2020.090210  9 160 210
2020.100210  10 160 210
2020.110210  11 160 210
2020.120210  12 160 210
2020.130210  13 160 210
2020.140210  14 160 210
2020.150210  15 160 210
2020.160210  16 160 210
2020.180210  18 160 210
2020.190210  19 160 210
2020.200210  20 160 210
2020.220210  22 160 210
2020.240210  24 160 210
2020.250210  25 160 210
2020.260210  26 160 210
2020.280210  28 160 210
2020.300210  30 160 210
2020.050260  5 210 260
2020.055260  5.5 210 260
2020.060260  6 210 260
2020.065260  6.5 210 260
2020.070260  7 210 260
2020.080260  8 210 260
2020.090260  9 210 260
2020.100260  10 210 260
2020.110260  11 210 260
2020.120260  12 210 260
2020.130260  13 210 260
2020.140260  14 210 260
2020.150260  15 210 260
2020.160260  16 210 260
2020.180260  18 210 260
2020.190260  19 210 260
2020.200260  20 210 260
2020.220260  22 210 260
2020.240260  24 210 260
2020.250260  25 210 260
2020.260260  26 210 260
2020.280260  28 210 260
2020.300260  30 210 260
2020.050310  5 260 310
2020.055310  5.5 260 310
2020.060310  6 260 310
2020.065310  6.5 260 310
2020.070310  7 260 310
2020.080310  8 260 310
2020.090310  9 260 310
2020.100310  10 260 310
2020.110310  11 260 310
2020.120310  12 260 310
2020.130310  13 260 310
2020.140310  14 260 310
2020.150310  15 260 310
2020.160310  16 260 310
2020.180310  18 260 310
2020.190310  19 260 310
2020.200310  20 260 310
2020.220310  22 260 310
2020.240310  24 260 310
2020.250310  25 260 310
2020.260310  26 260 310
2020.280310  28 260 310
2020.300310  30 260 310
2020.050350  5 300 350
2020.055350  5.5 300 350
2020.060350  6 300 350
2020.065350  6.5 300 350
2020.070350  7 300 350
2020.080350  8 300 350
2020.090350  9 300 350
2020.100350  10 300 350
2020.110350  11 300 350
2020.120350  12 300 350
2020.130350  13 300 350
2020.140350  14 300 350
2020.150350  15 300 350
2020.160350  16 300 350
2020.180350  18 300 350
2020.190350  19 300 350
2020.200350  20 300 350
2020.220350  22 300 350
2020.240350  24 300 350
2020.250350  25 300 350
2020.260350  26 300 350
2020.280350  28 300 350
2020.300350  30 300 350
2020.050410  5 360 410
2020.055410  5.5 360 410
2020.060410  6 360 410
2020.065410  6.5 360 410
2020.070410  7 360 410
2020.080410  8 360 410
2020.090410  9 360 410
2020.100410  10 360 410
2020.110410  11 360 410
2020.120410  12 360 410
2020.130410  13 360 410
2020.140410  14 360 410
2020.150410  15 360 410
2020.160410  16 360 410
2020.180410  18 360 410
2020.190410  19 360 410
2020.200410  20 360 410
2020.220410  22 360 410
2020.240410  24 360 410
2020.250410  25 360 410
2020.260410  26 360 410
2020.280410  28 360 410
2020.300410  30 360 410
2020.050460  5 410 460
2020.055460  5.5 410 460
2020.060460  6 410 460
2020.065460  6.5 410 460
2020.070460  7 410 460
2020.080460  8 410 460
2020.090460  9 410 460
2020.100460  10 410 460
2020.110460  11 410 460
2020.120460  12 400 460
2020.130460  13 400 460
2020.140460  14 400 460
2020.150460  15 400 460
2020.160460  16 400 460
2020.180460  18 400 460
2020.190460  19 400 460
2020.200460  20 400 460
2020.220460  22 400 460
2020.240460  24 400 460
2020.250460  25 400 460
2020.260460  26 400 460
2020.280460  28 400 460
2020.300460  30 400 460
2020.060550  6 500 550
2020.065550  6.5 500 550
2020.070550  7 500 550
2020.080550  8 500 550
2020.090550  9 500 550
2020.100550  10 500 550
2020.110550  11 500 550
2020.120550  12 500 550
2020.130550  13 500 550
2020.140550  14 500 550
2020.150550  15 500 550
2020.160550  16 500 550
2020.180550  18 500 550
2020.190550  19 500 550
2020.200550  20 500 550
2020.220550  22 500 550
2020.240550  24 500 550
2020.250550  25 500 550
2020.260550  26 500 550
2020.280550  28 500 550
2020.300550  30 500 550
2020.060600  6 550 600
2020.065600  6.5 550 600
2020.070600  7 550 600
2020.080600  8 550 600
2020.090600  9 550 600
2020.100600  10 550 600
2020.110600  11 550 600
2020.120600  12 550 600
2020.130600  13 550 600
2020.140600  14 550 600
2020.150600  15 550 600
2020.160600  16 550 600
2020.180600  18 550 600
2020.190600  19 550 600
2020.200600  20 550 600
2020.220600  22 550 600
2020.240600  24 550 600
2020.250600  25 550 600
2020.260600  26 550 600
2020.280600  28 550 600
2020.300600  30 550 600
2020.080800  8 750 800
2020.090800  9 750 800
2020.100800  10 750 800
2020.110800  11 750 800
2020.120800  12 750 800
2020.130800  13 750 800
2020.140800  14 750 800
2020.150800  15 750 800
2020.160800  16 750 800
2020.180800  18 750 800
2020.190800  19 750 800
2020.200800  20 750 800
2020.220800  22 750 800
2020.240800  24 750 800
2020.250800  25 750 800
2020.260800  26 750 800
2020.280800  28 750 800
2020.300800  30 750 800
2020.101000  10 950 1000
2020.111000  11 950 1000
2020.121000  12 950 1000
2020.131000  13 950 1000
2020.141000  14 950 1000
2020.151000  15 950 1000
2020.161000  16 950 1000
2020.181000  18 950 1000
2020.191000  19 950 1000
2020.201000  20 950 1000
2020.221000  22 950 1000
2020.241000  24 950 1000
2020.251000  25 950 1000
2020.261000  26 950 1000
2020.281000  28 950 1000
2020.301000  30 950 1000

2020-2
